Axial flow pump

Description：

The evaporative forced circulation pump is the fifth generation new product developed by our company with years of experience in production, maintenance, and application. The FJX V-series evaporative forced circulation pump of the company was developed based on the opinions of engineering and technical personnel who have been engaged in evaporative design for a long time in professional design institutes. In terms of installation forms, there are ground fixed installation, suspended installation, and pool floating installation. Sealing structure: secondary impeller+combined double end mechanical seal/combined double end mechanical seal/double packing seal.

If you would like to have a deeper understanding of our products, prices, and after-sales service, please contact us in the following ways. We will respond promptly and provide you with necessary services wholeheartedly.

+86 0523-84328880

structure and performance

Compliant with GB/T13008 design standards Flow range:~15000m ³/h Head range: 1.5-7.0m Design pressure:~0.6MPa Applicable temperature:~200 ℃

Materials used

Pump body structure

Casting or welding of steel plates.

Material for overcurrent section

ZG20#、1Cr18Ni9Ti、316L、CD4MCU、 Titanium, nickel, Monel, Inconel, 2205, 2520, 904L, etc

Scope of Application

It can transport various neutral or highly corrosive media containing solid particles. Mainly used in high flow and low head situations, especially suitable for forced circulation systems in salt and alkali production. The application fields have expanded from the original caustic soda evaporation to include industries such as ammonium phosphate, phosphoric acid, vacuum salt production, alcohol, lactic acid, alumina, rutile titanium dioxide, calcium chloride, ammonium chloride, refrigerants, molten salts, polyvinyl chloride, and waste acid concentration.

Structural diagram

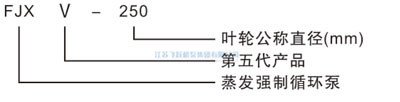

■ 型号说明

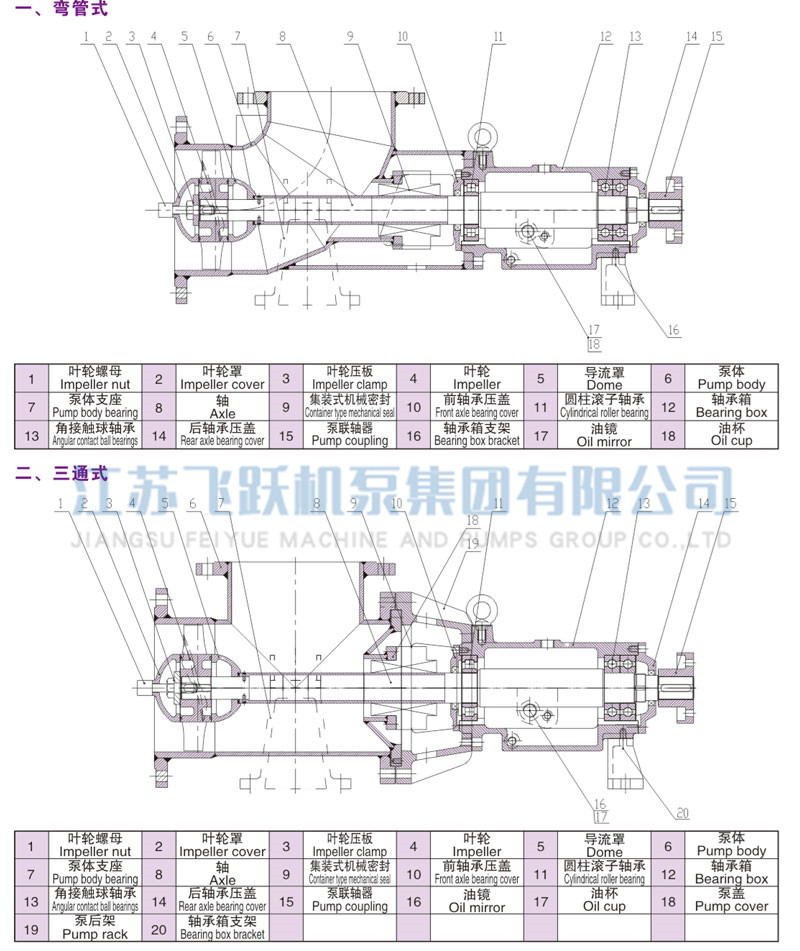

■ 结构图
