Extended long axis cantilever wear-resistant slag pool pump

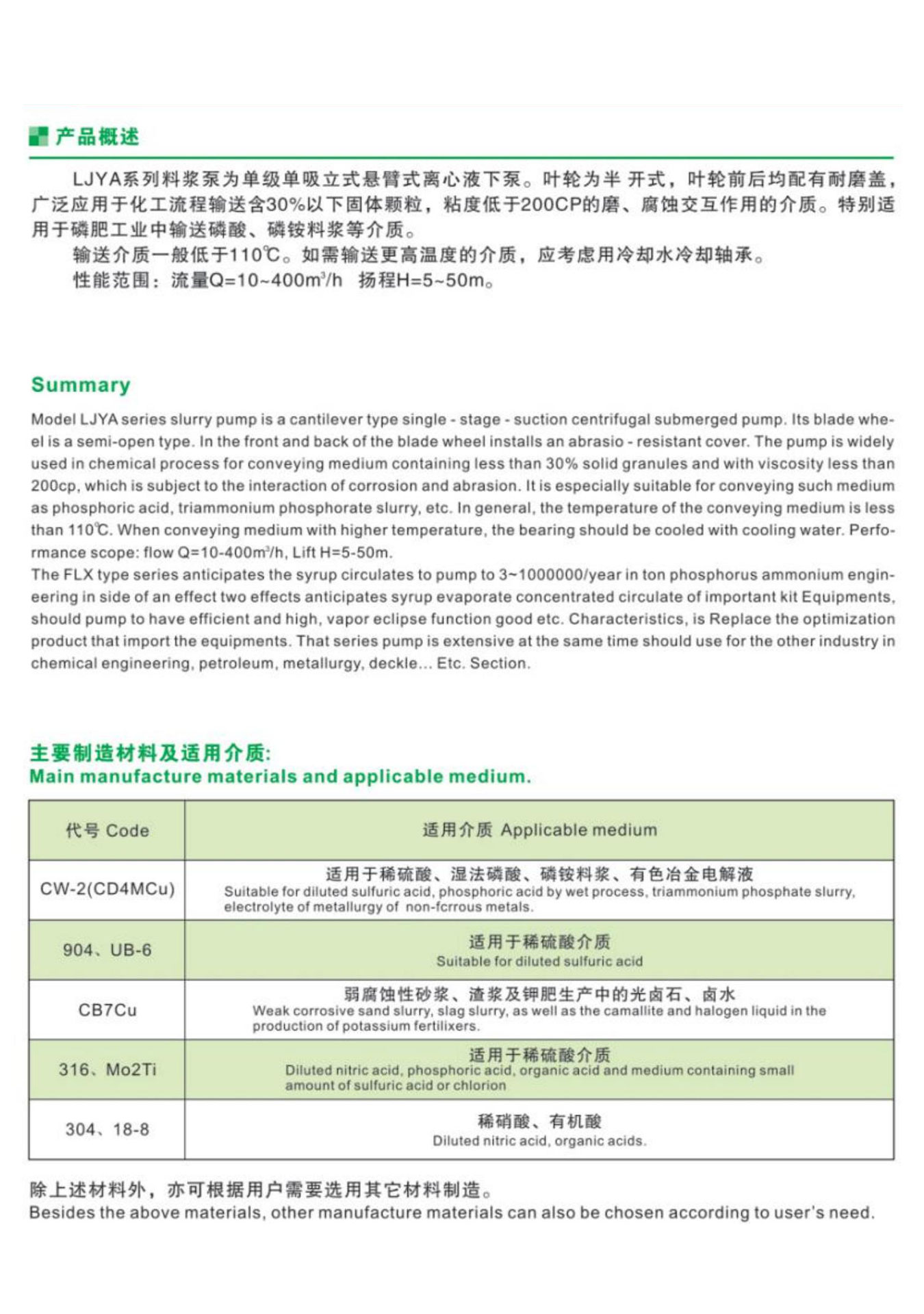

Description:

The slurry pump is a single-stage single suction vertical cantilever centrifugal submersible pump. The impeller is semi open and equipped with wear-resistant covers at both the front and back of the impeller. It is widely used in chemical processes to transport media with solid particles below 30% and viscosity below 200CP that interact with grinding and corrosion. Especially suitable for transporting media such as phosphoric acid and ammonium phosphate slurry in the phosphate fertilizer industry. The conveying medium is generally below 110 ℃. If higher temperature media need to be transported, cooling water should be considered to cool the bearings. It can transport various neutral or highly corrosive media containing solid particles.

If you would like to have a deeper understanding of our products, prices, and after-sales service, please contact us in the following ways. We will respond promptly and provide you with necessary services wholeheartedly.

+86 0523-84328880
structure and performance
Compliant with API6108th/APl6109th/API61010th design standards Flow range: 10~400m ³/h Head range:~50m Design pressure: up to 2.5MPa Applicable temperature: -40~150 ℃
Materials used


Scope of Application
Mainly used in industries and fields such as refineries, petrochemicals, low-temperature engineering, coal chemical industry, chemical fiber and general industrial processes, power plants, environmental protection engineering, offshore industry, and seawater desalination of phosphoric acid and ammonium phosphate.

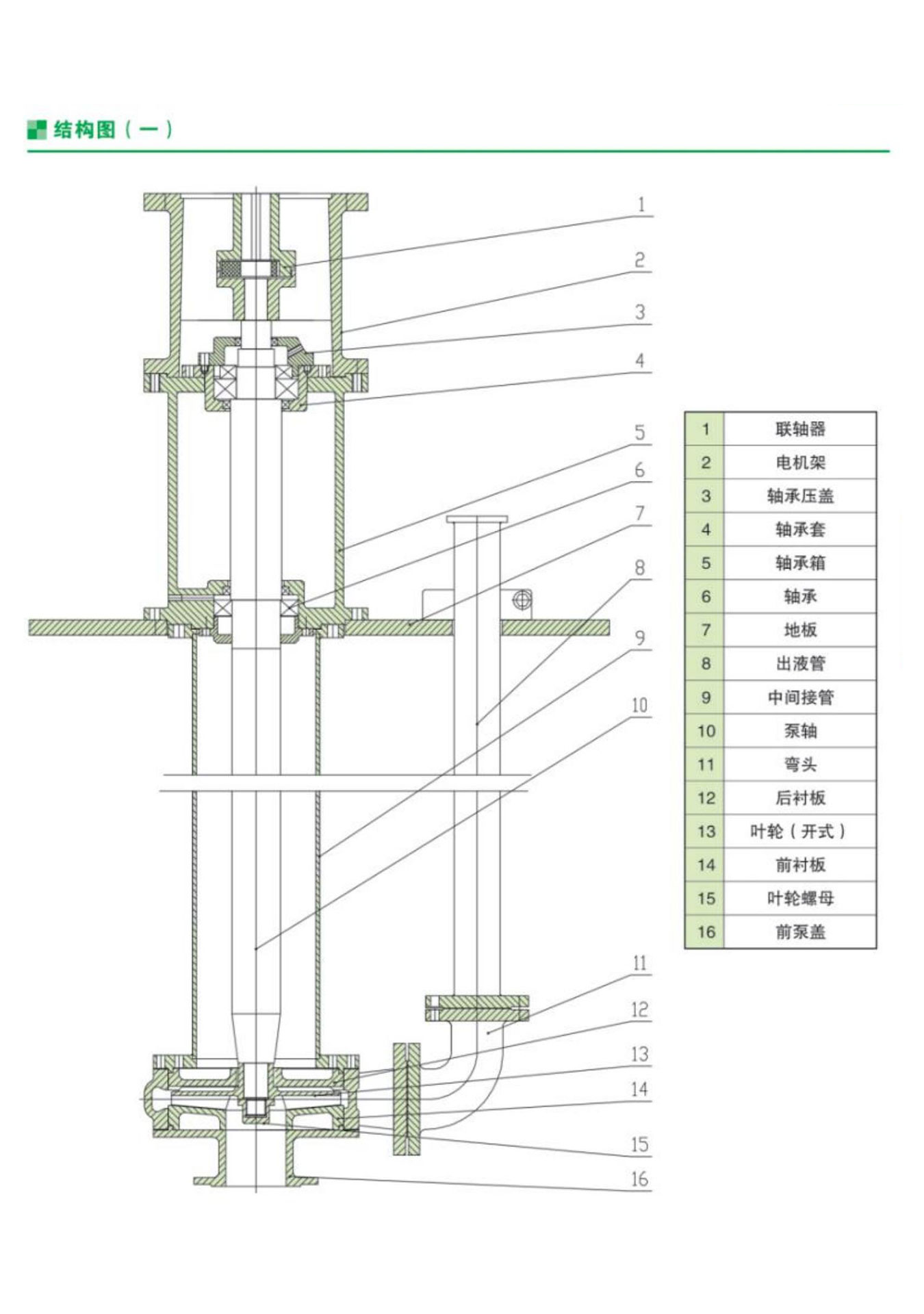

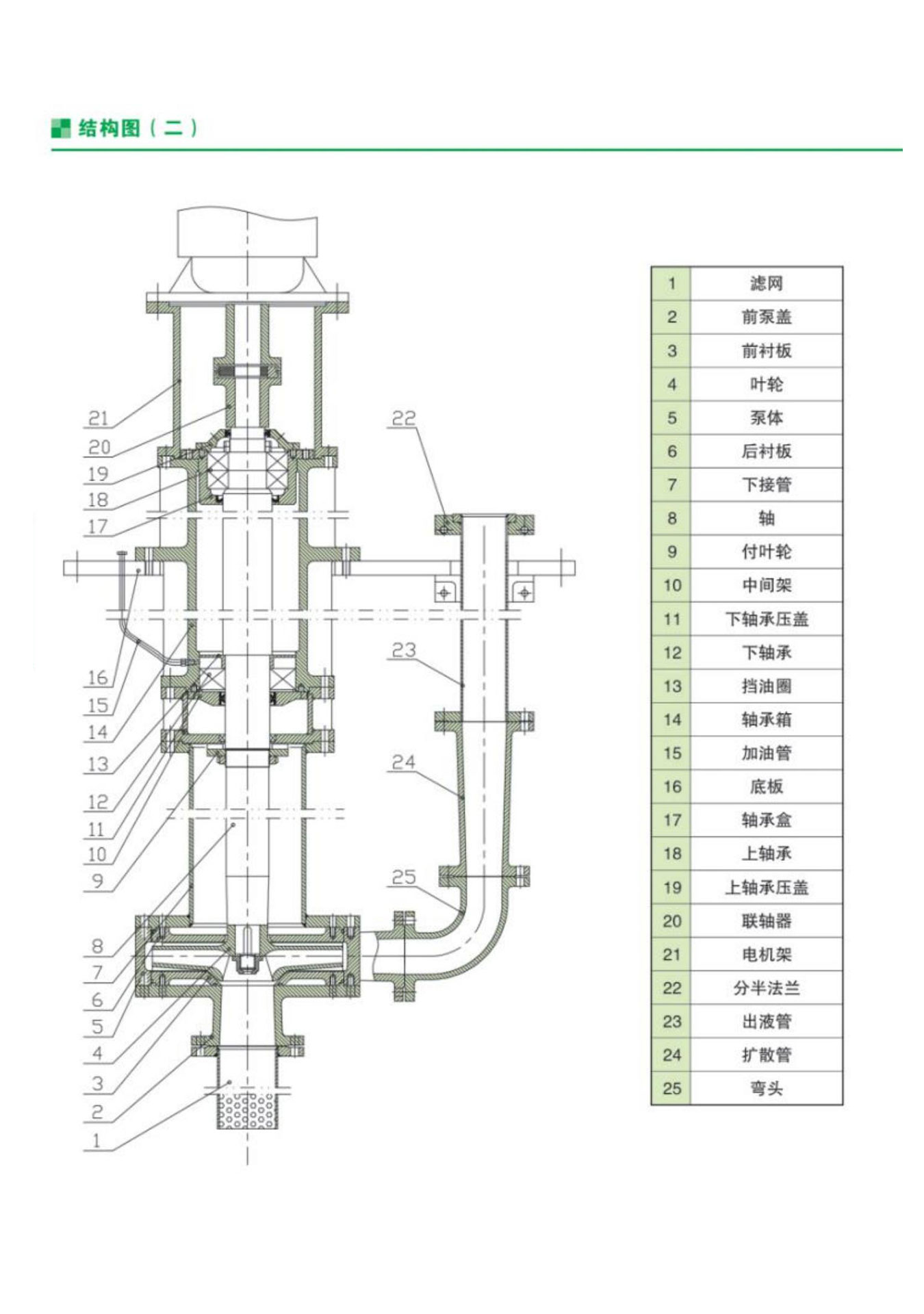

Structural diagram

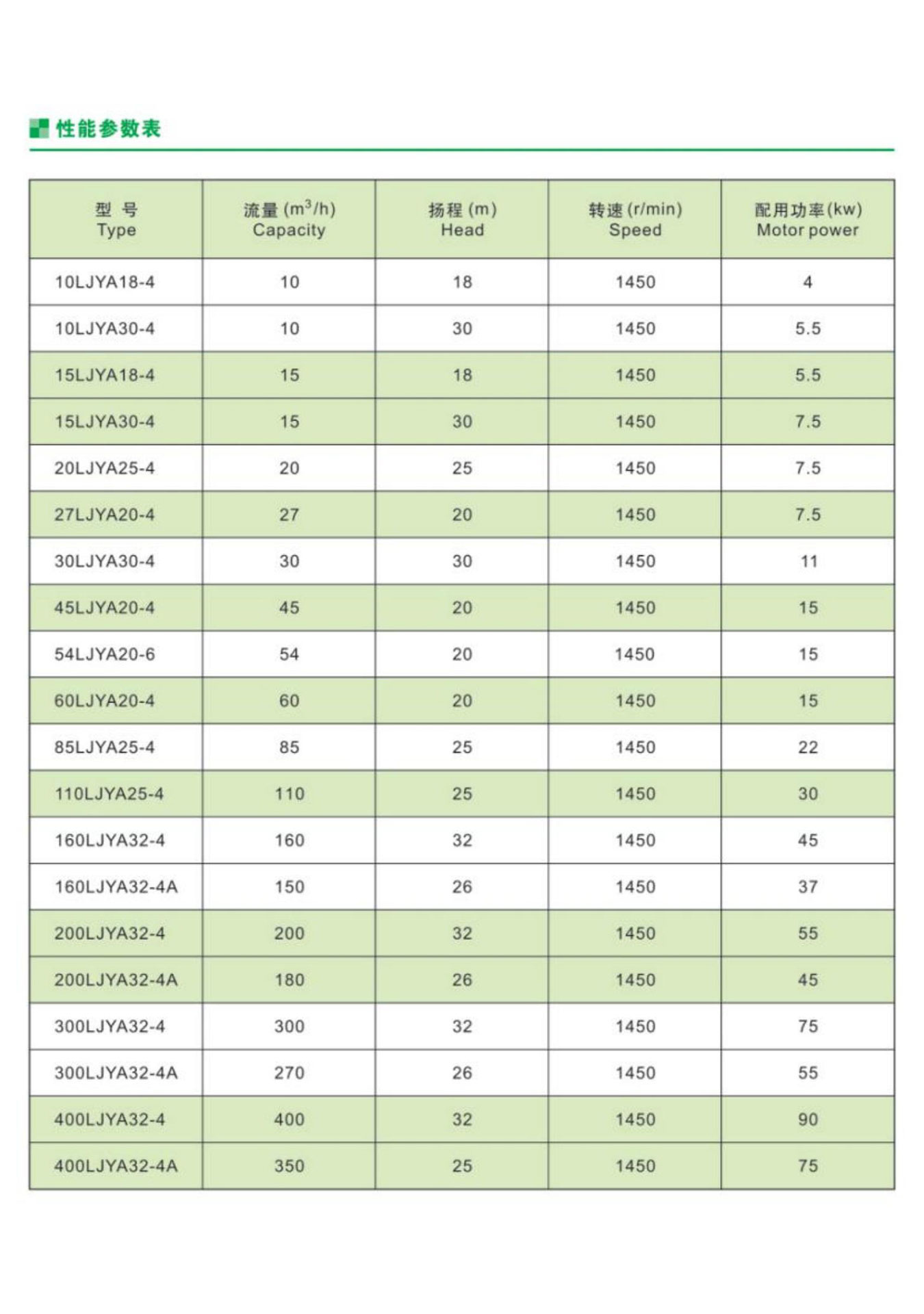

Performance parameters
