High temperature and high pressure double shell multi-stage pump

Description:

This series of pumps are vertical and horizontal single suction multi-stage segmented centrifugal pumps. It has the advantages of high efficiency, wide performance range, safe and stable operation, low noise, long service life, and easy installation and maintenance. It can be used to transport media containing solid particles (particle diameter less than one fourth of the impeller channel), and can also be used to transport hot water, oil, corrosive or abrasive media by changing the material of the pump (or the material of the pump's flow passage), sealing form, and adding a cooling system. The operating temperature of the series of vertical and horizontal multi-stage centrifugal pumps is -60 ° C to 400 ° C, and various materials are available for users to choose from, including HT200, QT600, JM3, 28 # alloy, 304, 304L, 316L, 317L, 904L, CD4, Hastelloy C, Hastelloy B, etc. Our company has passed the ISO9001:2008 quality system certification, and our product design, production, and service have strict and standardized control systems, ensuring sufficient product quality assurance.

If you would like to have a deeper understanding of our products, prices, and after-sales service, please contact us in the following ways. We will respond promptly and provide you with necessary services wholeheartedly.

+86 0523-84328880
structure and performance
Complies with API610 design standards Flow range: 50-800m ³/h Head range:~2600m Applicable temperature: -80 ℃~450 ℃
Scope of Application
This series of pumps is mainly used in industries and fields such as refineries, petrochemicals, low-temperature engineering, coal chemical industry, power plants, environmental protection engineering, sewage treatment, cement plants, etc. Suitable for transporting various clean, particle free chemical media, neutral or corrosive room temperature or high temperature media such as oil, sewage, etc.

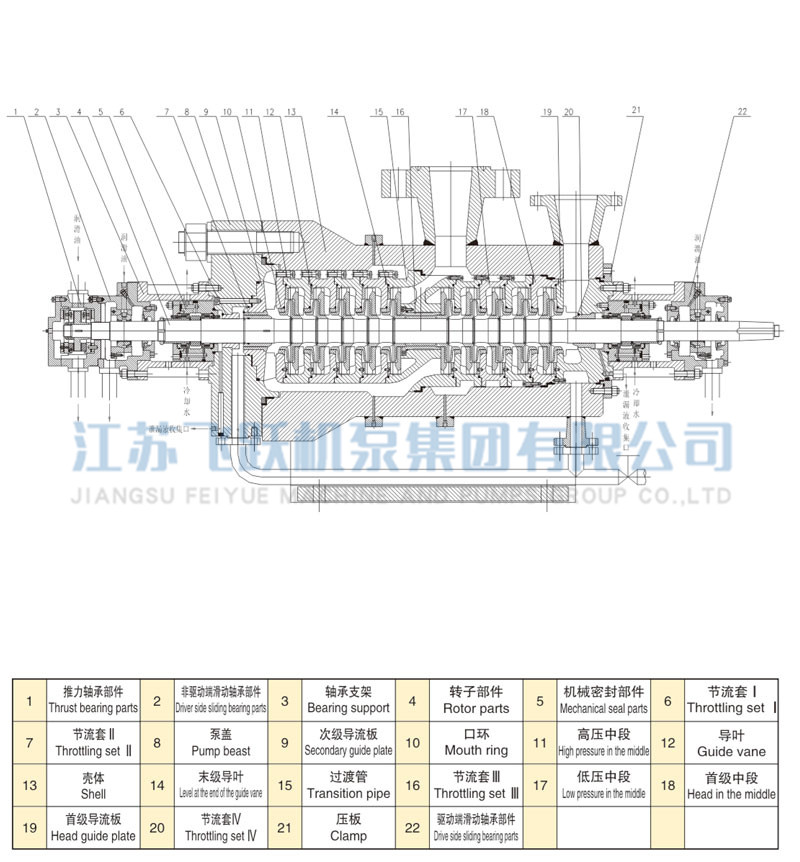

Structural diagram
