High temperature and high pressure solid-liquid mixed transportation wear-resistant pump (OH2)

Description：

This series of pumps is a horizontal single-stage petrochemical process pump designed according to the API610 standard, with a high degree of standardization. The basic components of different specifications of pumps in the series can be interchanged. This series of pumps has nearly 50 specifications and 9 universal bearing components covering 4 pressure levels, which can be widely used in various demanding industrial processes.

Get a Quote for Industrial Pumps Today

Send us your requirements (flow rate, head, medium, temperature), and our engineers will provide a professional solution within 12 hours.

Get Instant Quote
Click to open WhatsApp Web or scan the QR code.

Contact our engineers directly via WhatsApp

Performance

Flow Q:~1800m³/h
Head H:~200m
Design temperature: 420 ℃
Design pressure: 15.0MPa

Materials used

1. Impeller and guide vanes: high wear-resistant alloy Ni Hard

2. Pump casing: Martensitic stainless steel 06Cr13Ni4Mo

3. Pump shaft: precipitation hardened stainless steel 17-4PH

4. Shaft sleeve: Austenitic stainless steel 316L

Scope of Application

Coal chemical chilled water pump, lock bucket circulation pump, high-temperature condensate pump; In the fields of petrochemicals, seawater desalination, power plants, etc., where high-temperature, ultra-high pressure, and wear-resistant media are transported;

Structure

Structural features:

1. The open impeller structure is equipped with replaceable wear-resistant plates on the corresponding pump body and pump cover;

2. The pressure chamber adopts radial guide vanes and annular volute shell, which ensures more uniform stress on the pressure bearing components;

3. The containerized single end mechanical seal is assisted by the Plan32 flushing scheme to improve the sealing reliability and service life of the pump;

4. The large diameter rigid shaft structure improves the reliability and smooth operation of the pump;

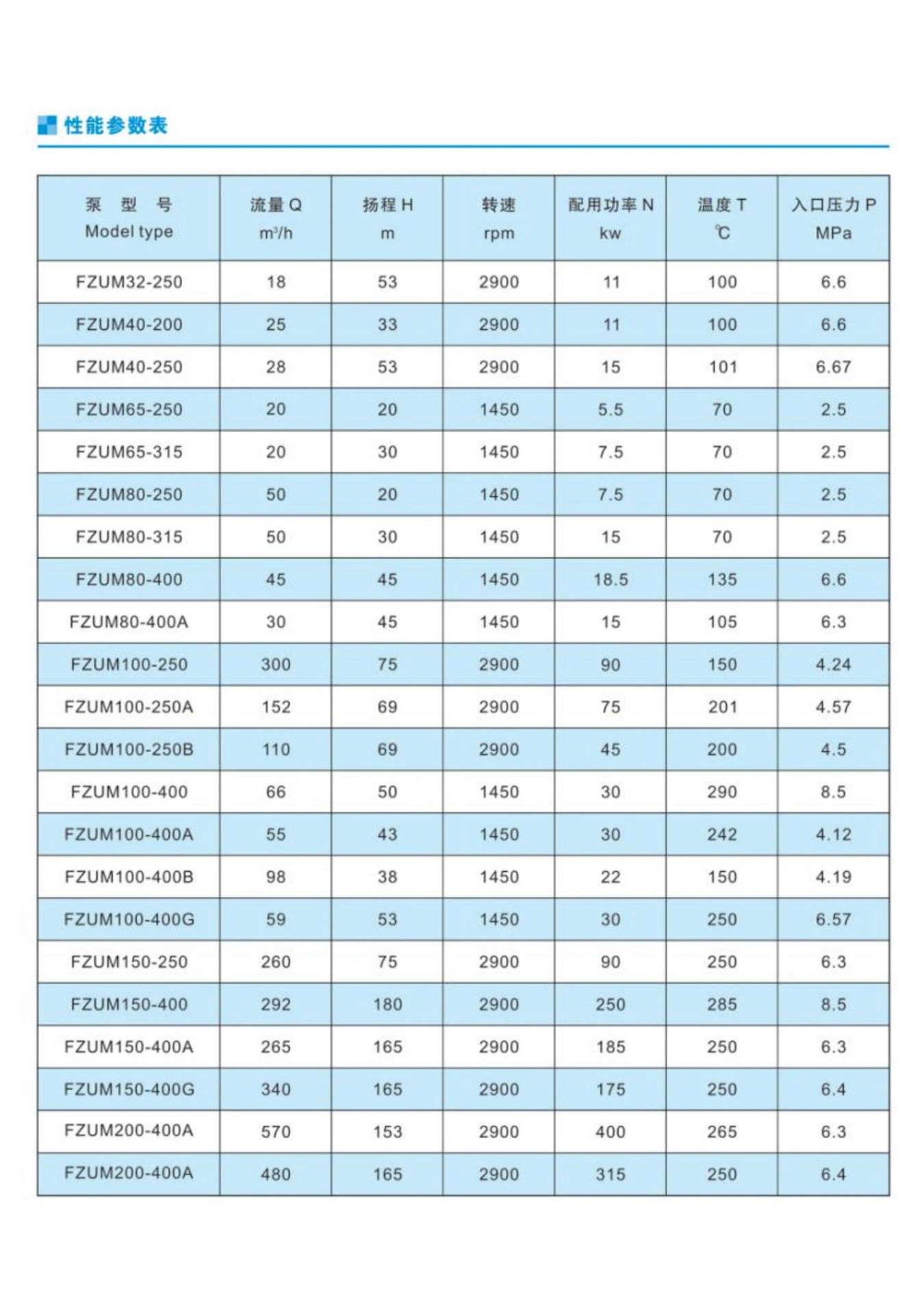

Performance parameters
