Description：

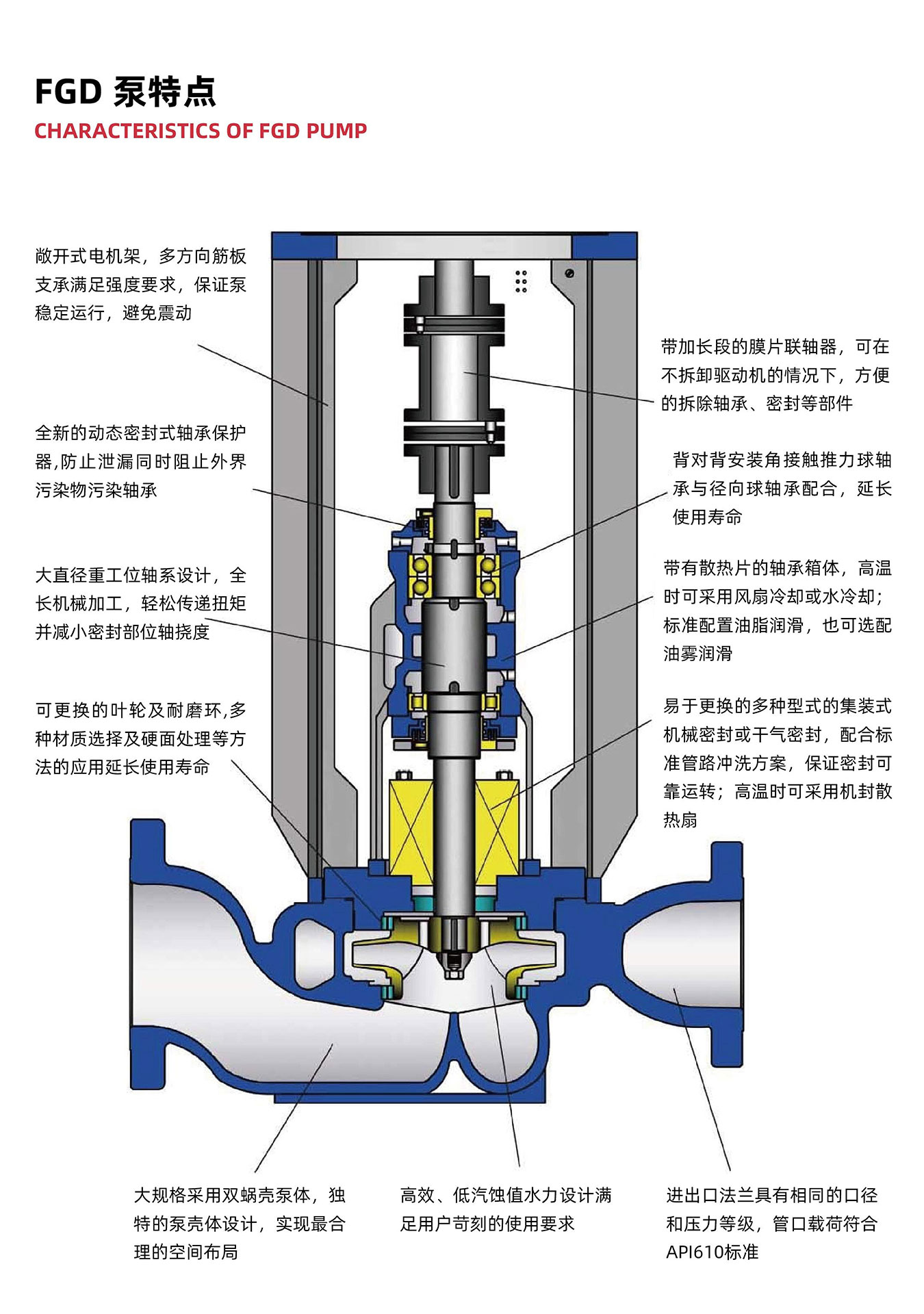

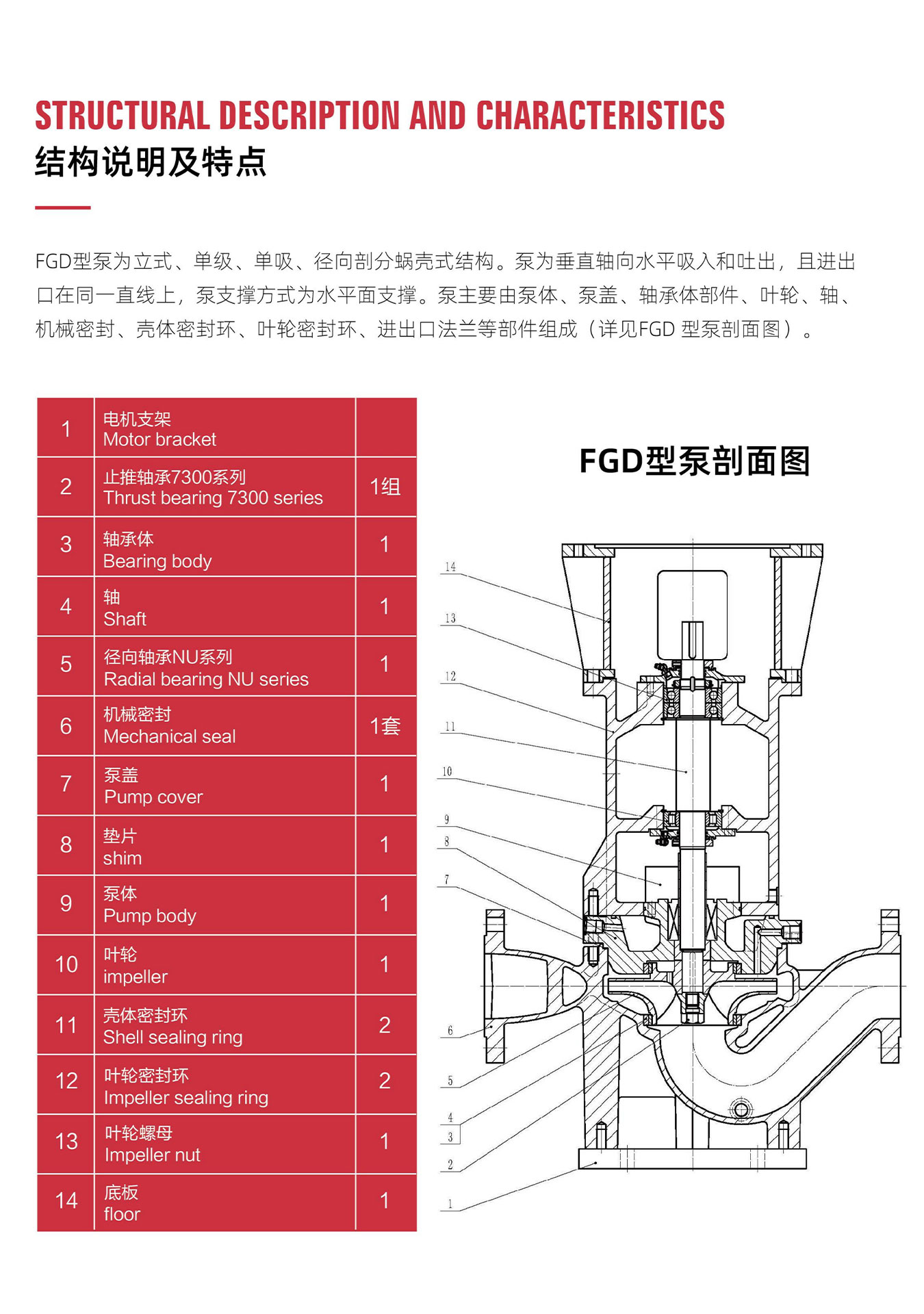

This series of pumps is a single-stage single suction radial split vertical pipeline centrifugal pump, designed and manufactured in accordance with the AP1610 standard requirements. The pump structure conforms to the AP1610OH3 pump type; The OH3 vertical pipeline pump is a single-stage cantilever pump with an independent bearing frame; The axial force of this series of pumps is balanced through the front and rear wear-resistant rings and balance holes of the impeller, and the residual axial force is borne by the thrust bearing of the bearing box. The bearing is lubricated with grease, and the motor is installed on a bracket integrated with the pump; The pump is connected to the drive machine with an extended coupling. The rotation direction of this series of pumps is clockwise when viewed from the motor end downwards. The centerline of the discharge and suction ports of the OH3 series pumps are on the same horizontal line, which occupies a small area and is easy to install.
If you would like to have a deeper understanding of our products, prices, and after-sales service, please contact us in the following ways. We will respond promptly and provide you with necessary services wholeheartedly.
Phone : +86 0523-84328880
Phone : +86 0523-84321006
Email : info@jsfeiyue.net
Email : wxq@jsfeiyue.net
Address : No. 18, Runxin Avenue, Xinqiao Industrial Park, Jingjiang City, Jiangsu Province, China
