Petrochemical process pump

Description：

This series of pumps is a petrochemical process pump designed according to API610 specifications. The pump is a single-stage, horizontal radial split volute pump, with the pump body supported by feet. Single suction radial impeller, axial suction, radial discharge. According to the usage conditions, use front and rear wear rings and balance holes for hydraulic balance. The packing box has cooling or heating pipe joints. The shaft seal adopts a containerized single end face or double end face seal. And equipped with cooling flushing or sealing system. The sealed pipeline is designed according to API specifications. The rated pressure rating of the suction and discharge pipe flanges is the same. From the motor end, the pump rotates clockwise.

If you would like to have a deeper understanding of our products, prices, and after-sales service, please contact us in the following ways. We will respond promptly and provide you with necessary services wholeheartedly.

+86 0523-84328880

structure and performance

The pump is a single-stage, horizontal radial split volute pump, with the pump body supported by feet Single suction radial impeller. Axial suction, radial discharge. According to the usage conditions, use front and rear wear rings and balance holes for hydraulic balance. The packing box has cooling or heating pipe joints. The shaft seal adopts packing seal, and can also use single or double end mechanical seal. And equipped with cooling flushing or sealing system. Standard pipelines are designed according to API specifications. The rated pressure rating of the suction and discharge pipe flanges is the same. From the motor end, the pump rotates clockwise.

Materials used

Scope of Application

Refineries, petrochemical industry, coal processing industry, and low-temperature engineering Chemical industry, papermaking, pulp industry, sugar industry, and general process industry Water supply plant, seawater desalination plant Heating and air conditioning system power plant Environmental Protection Engineering Ships and offshore industries, etc

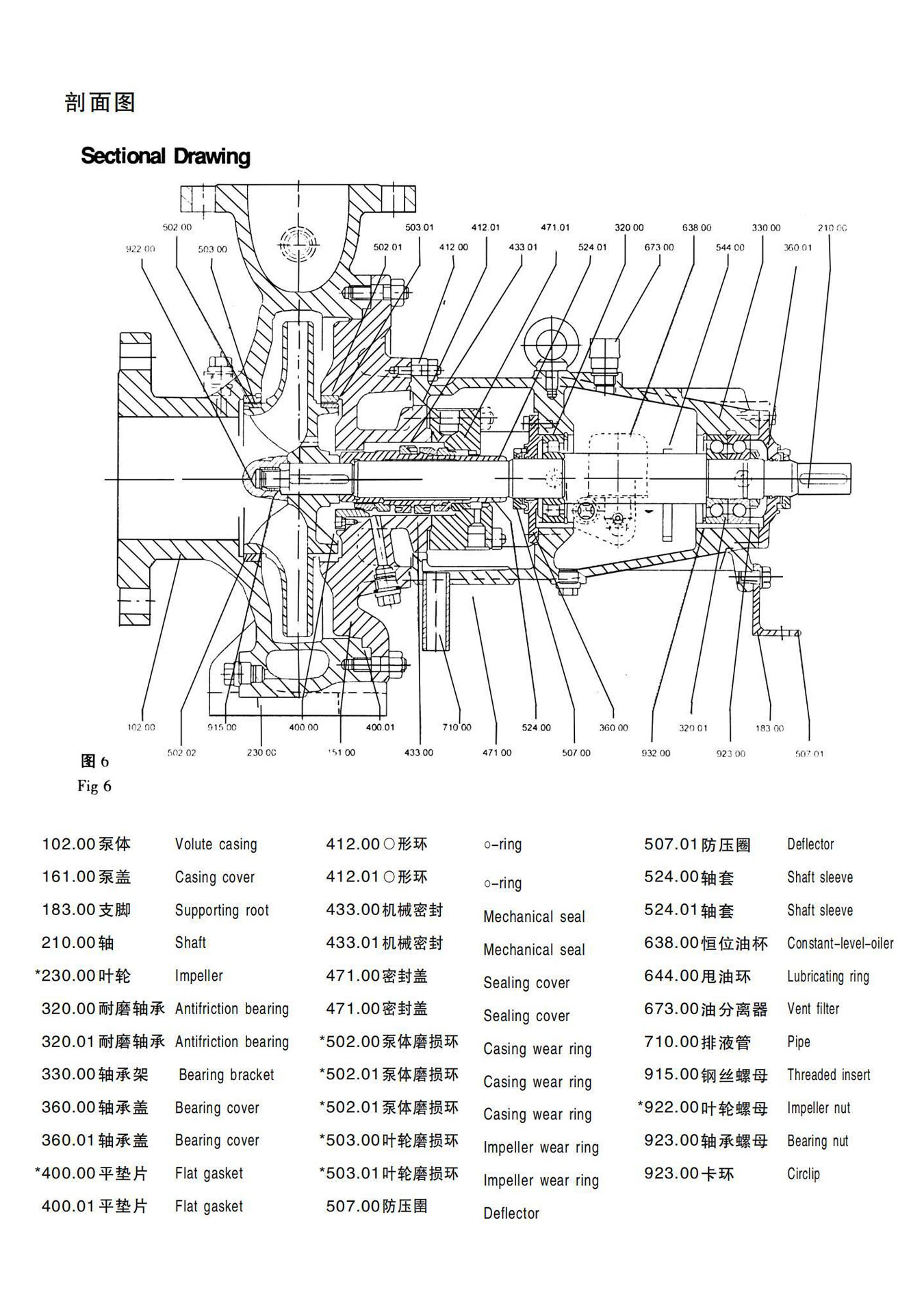

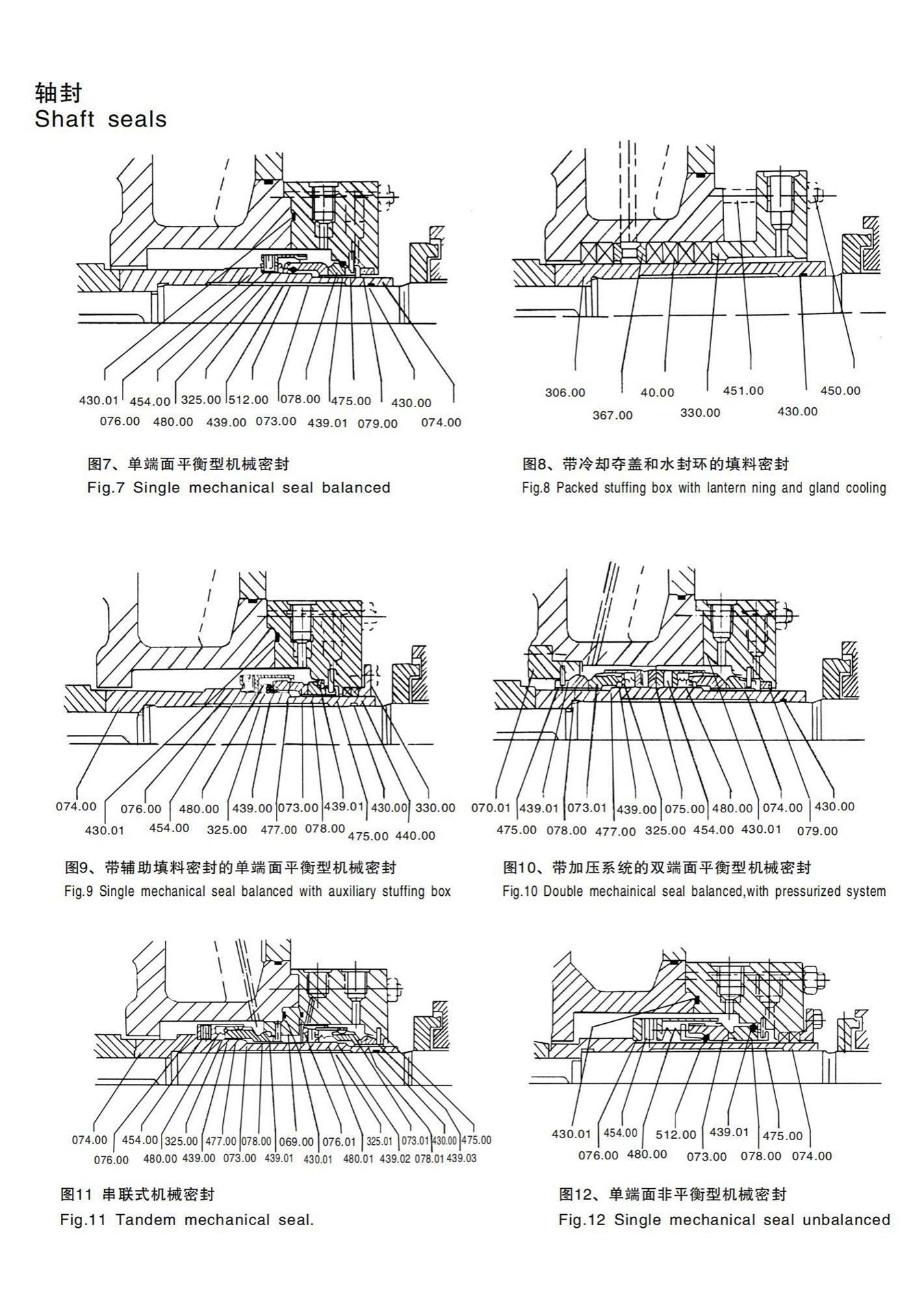

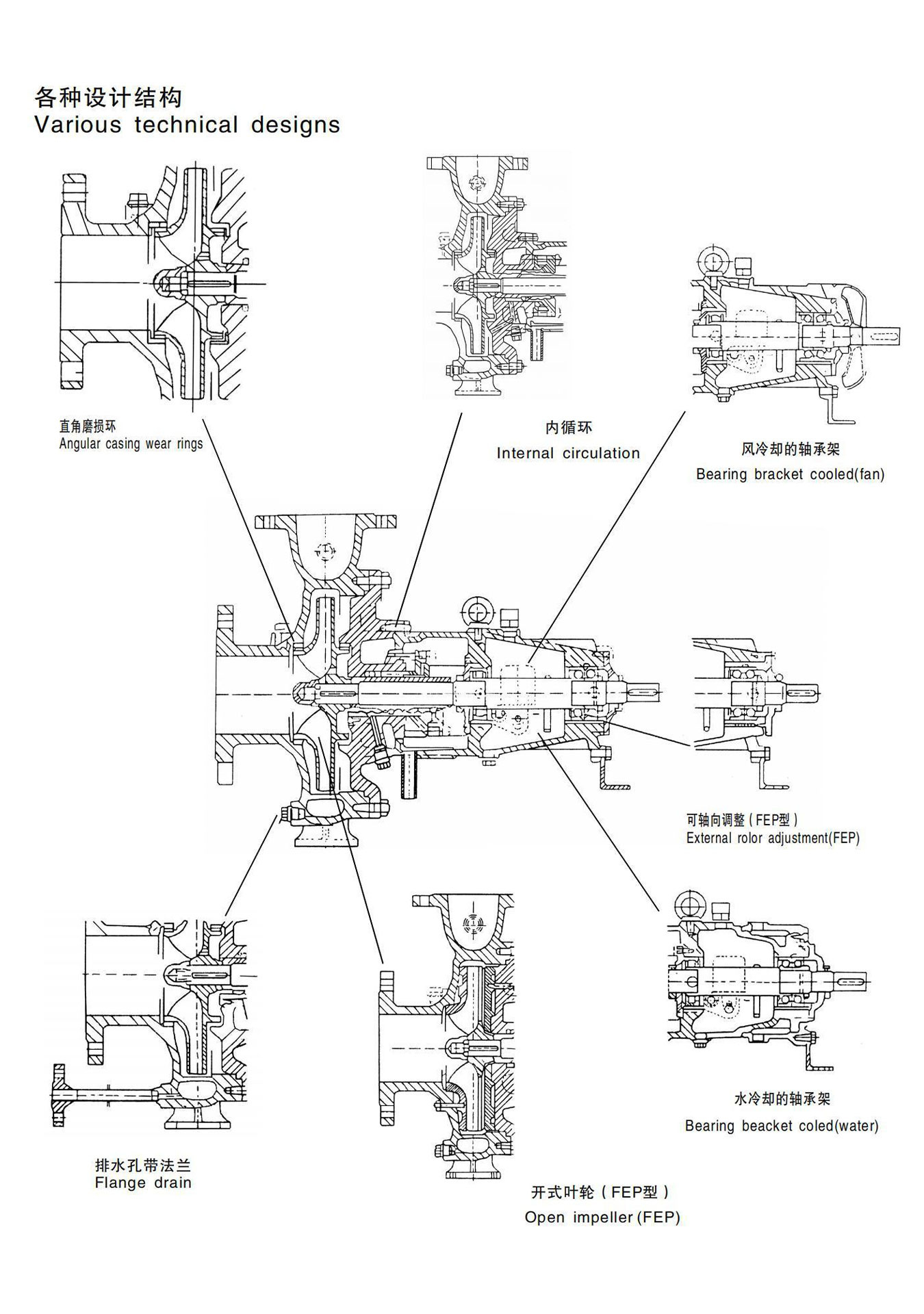

Structural diagram

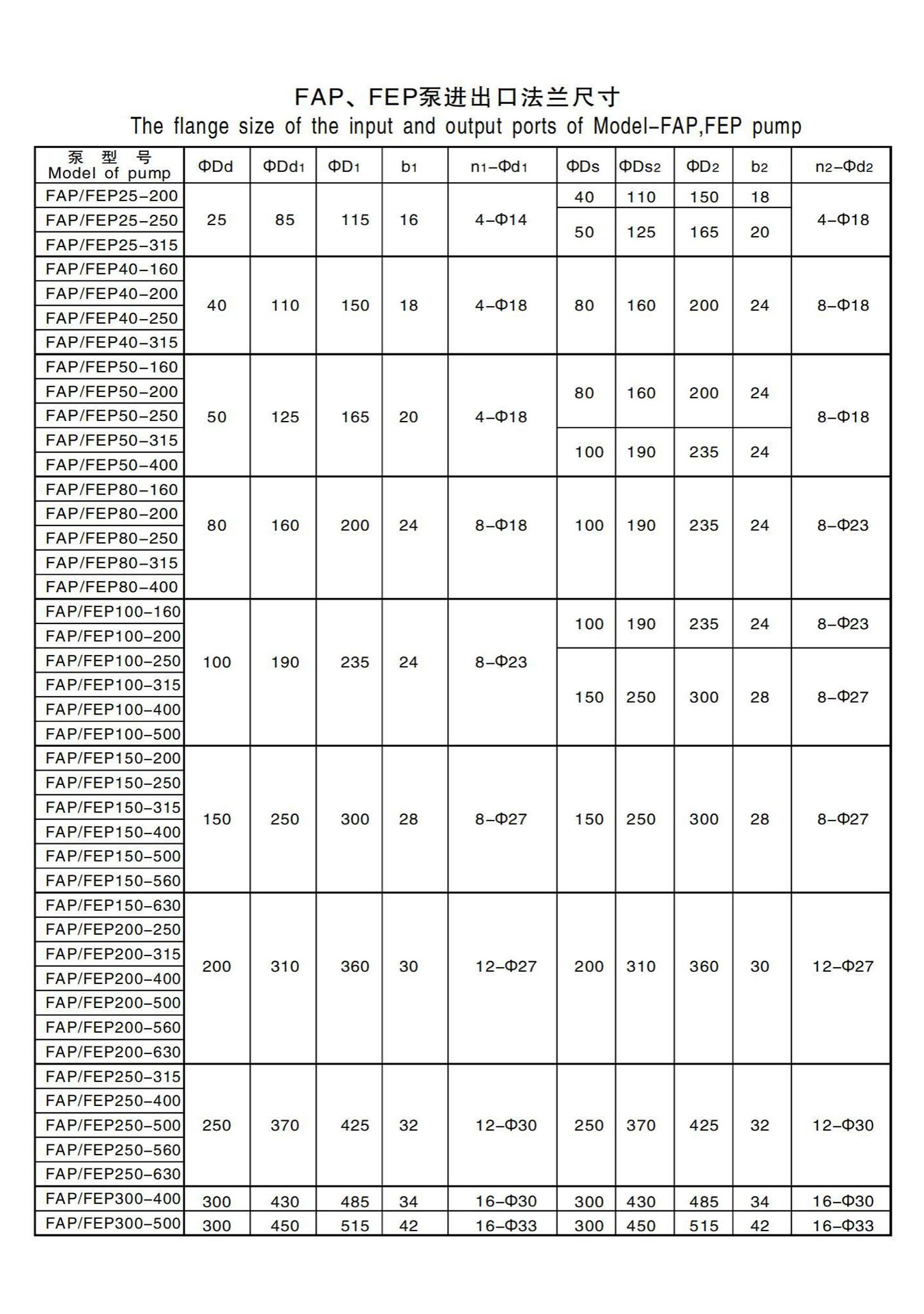

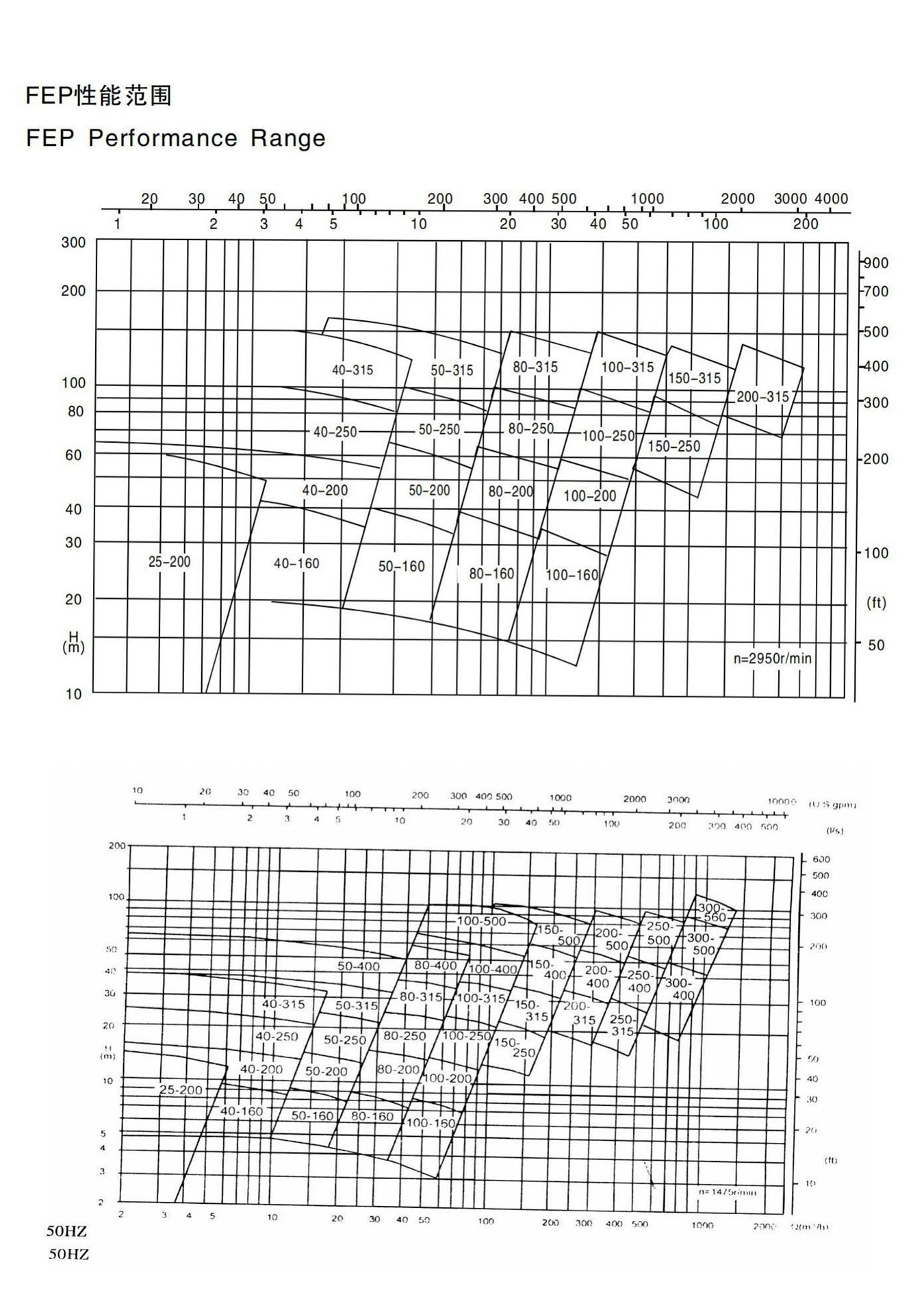

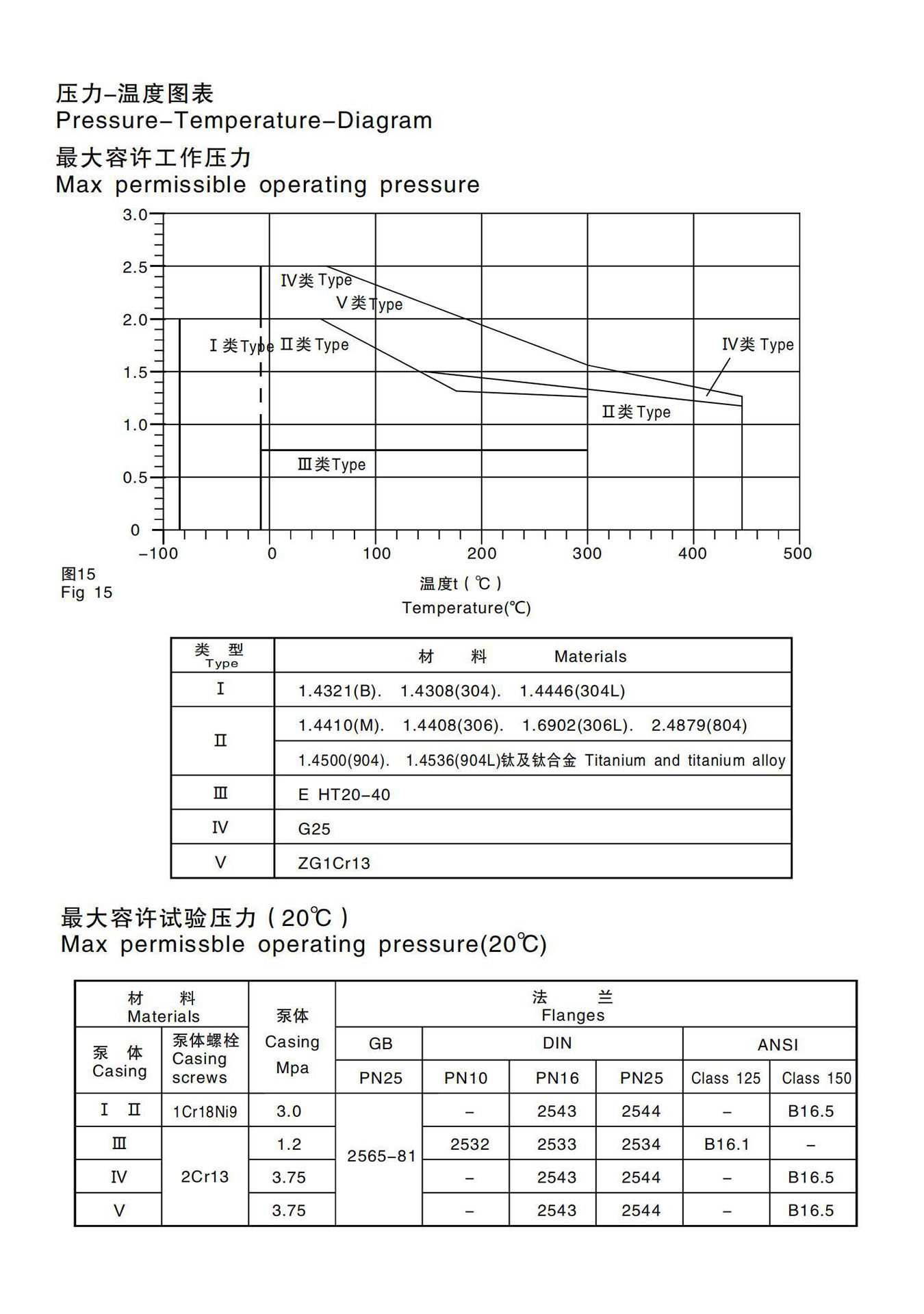

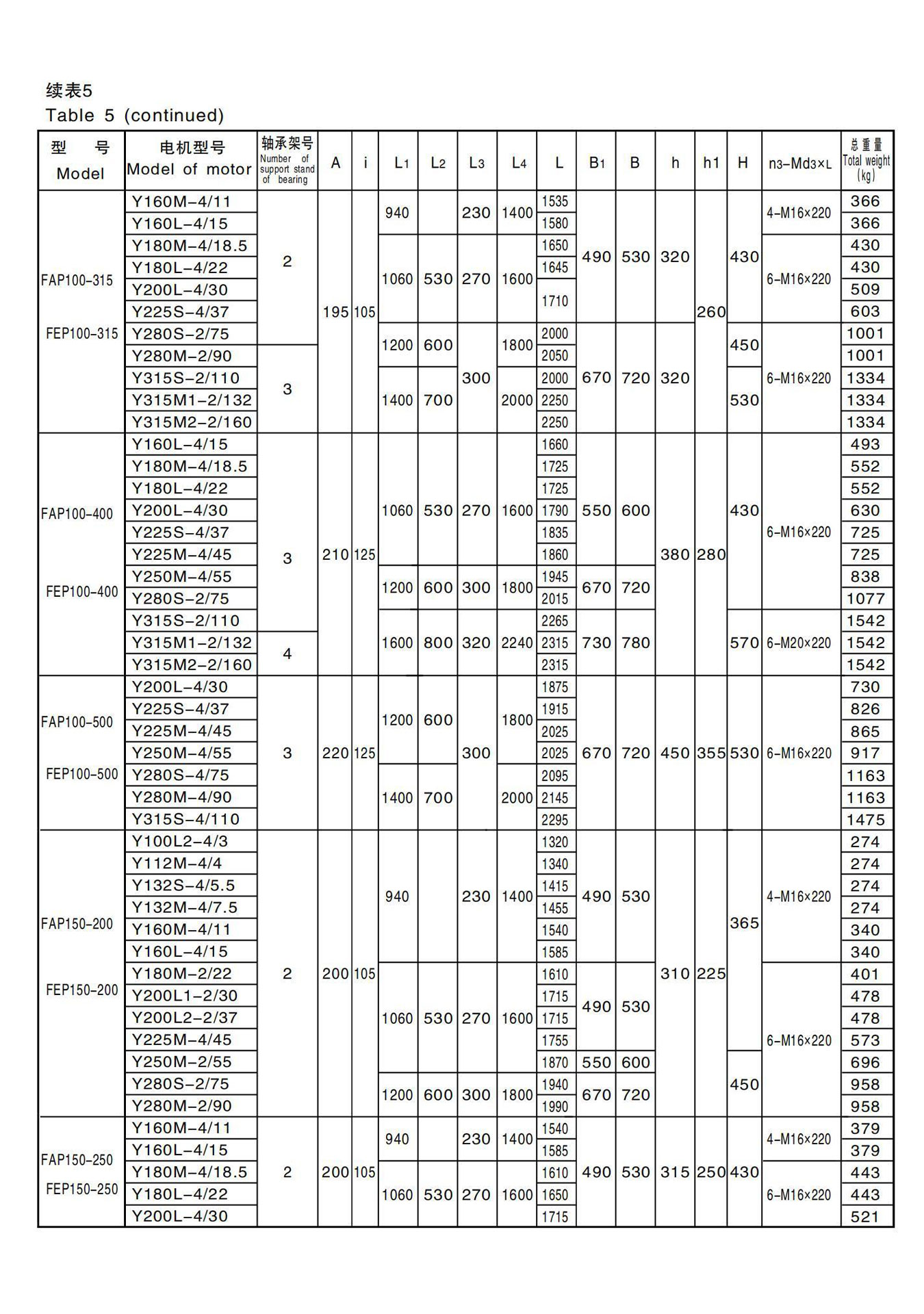

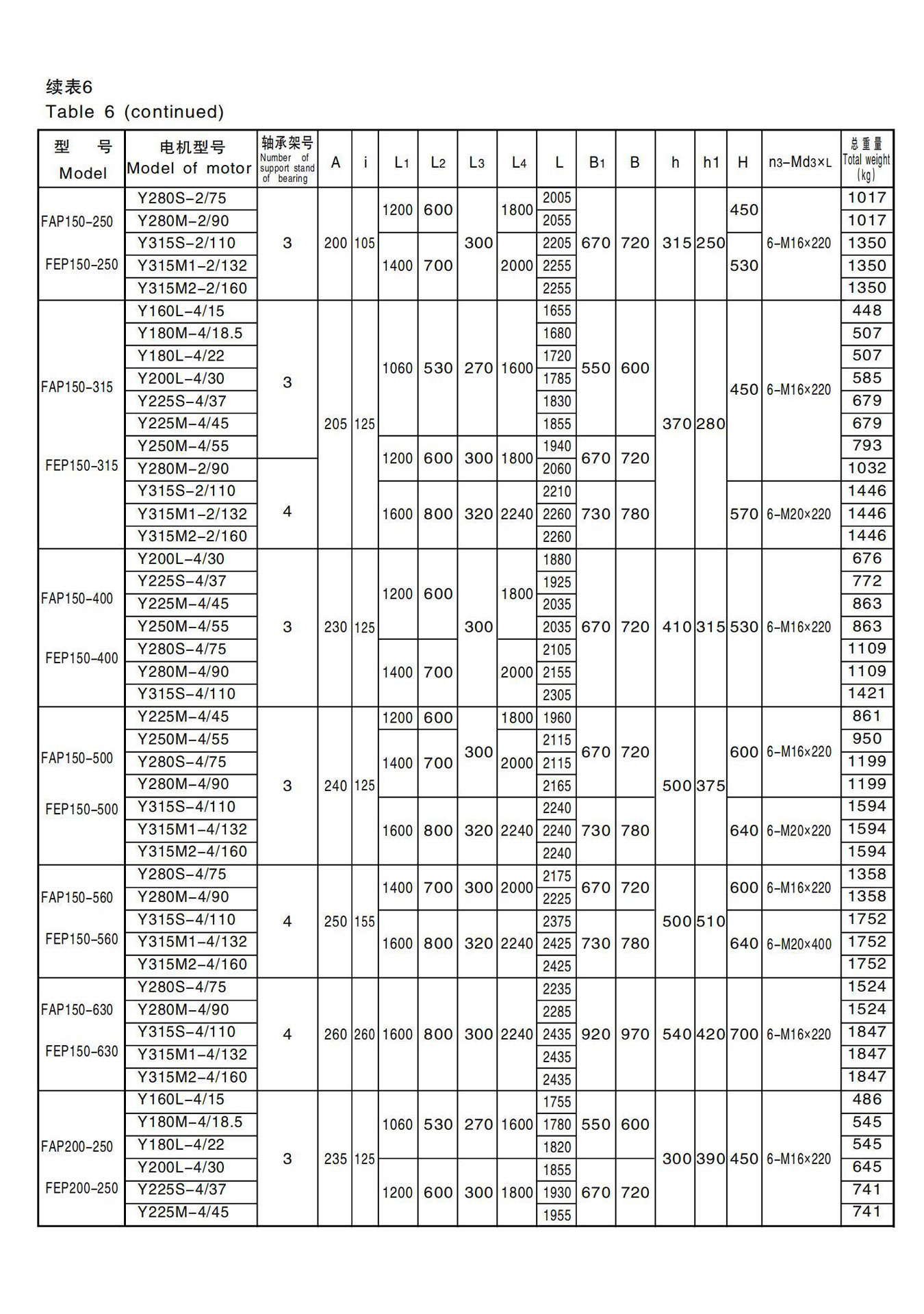

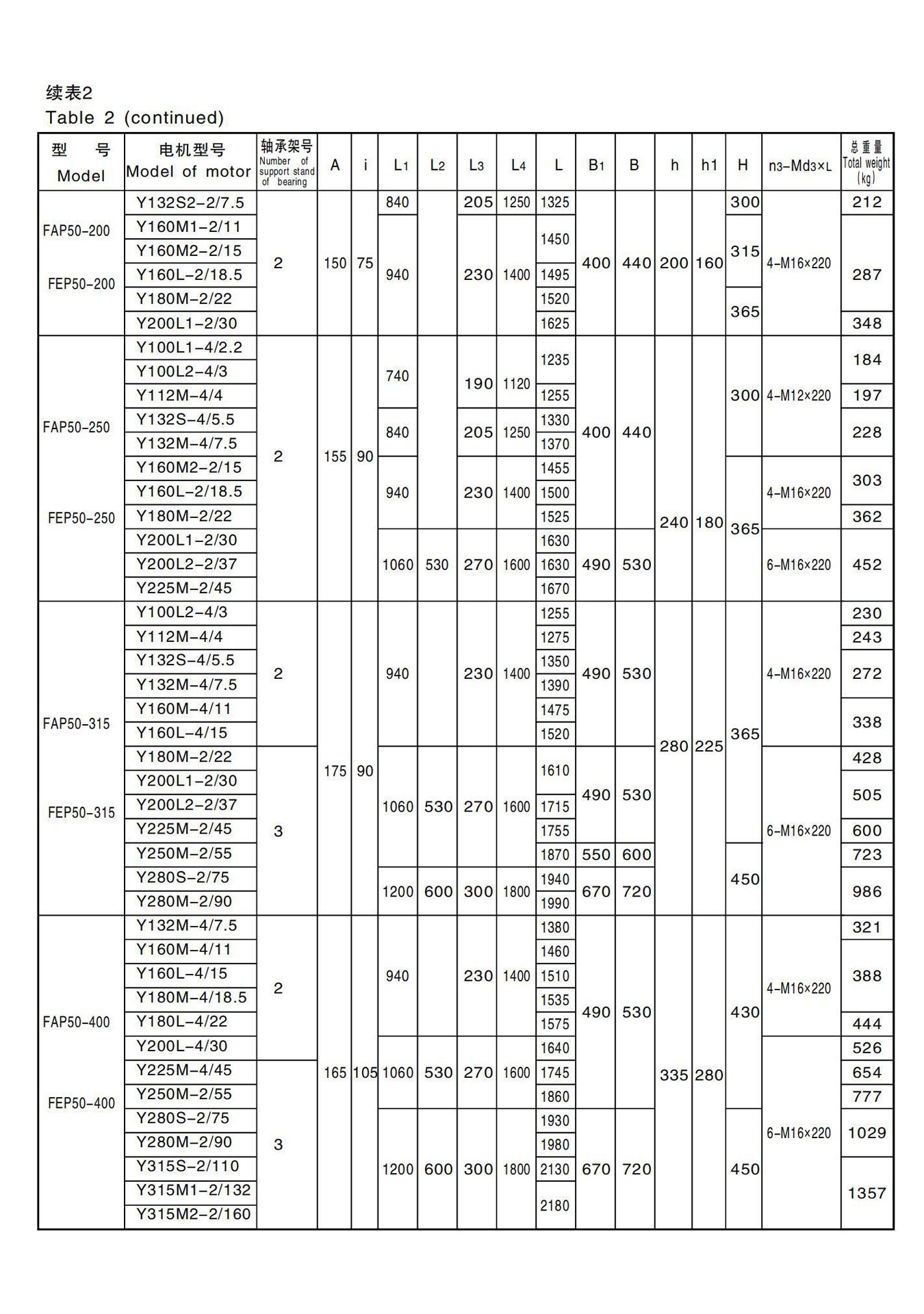

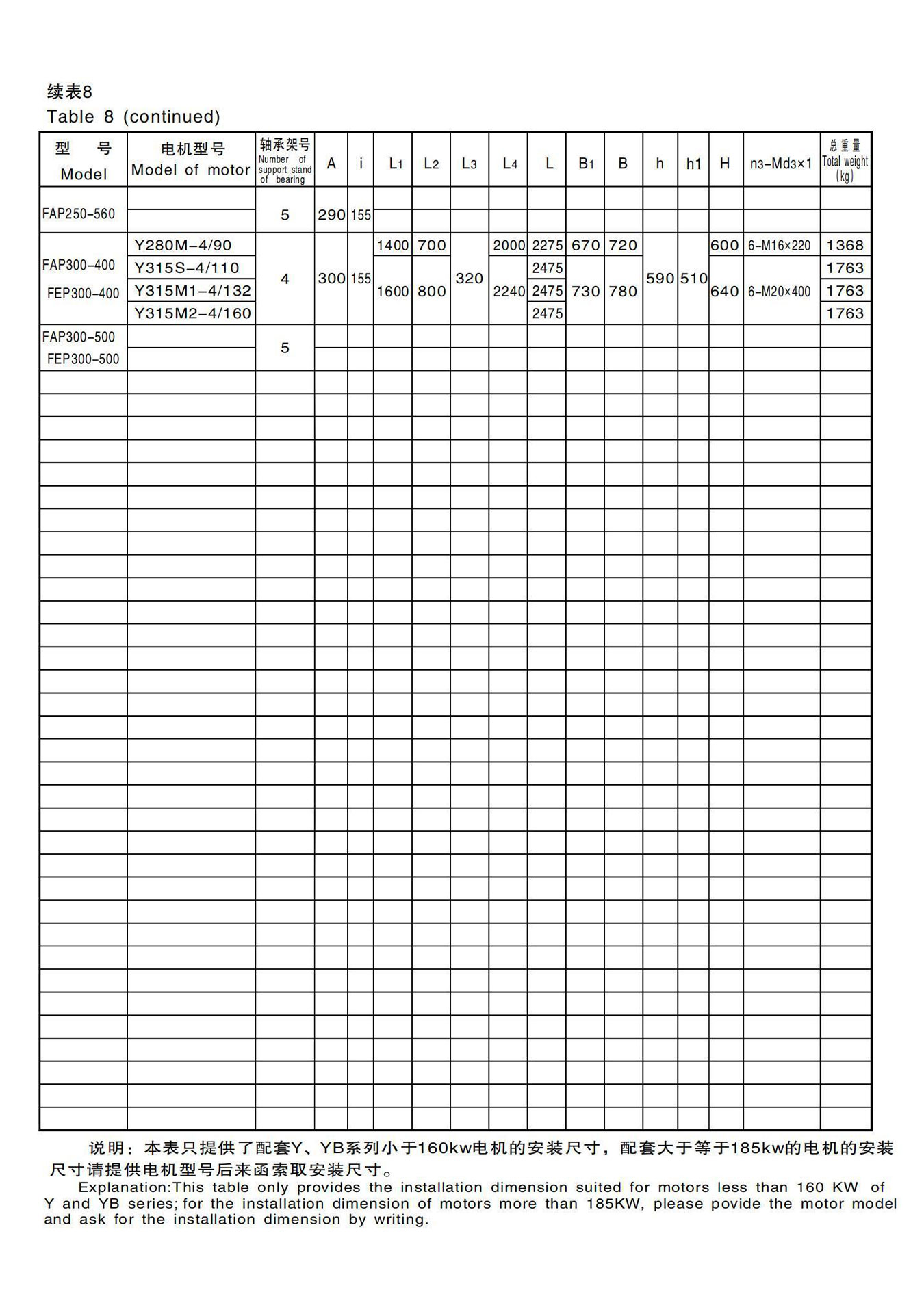

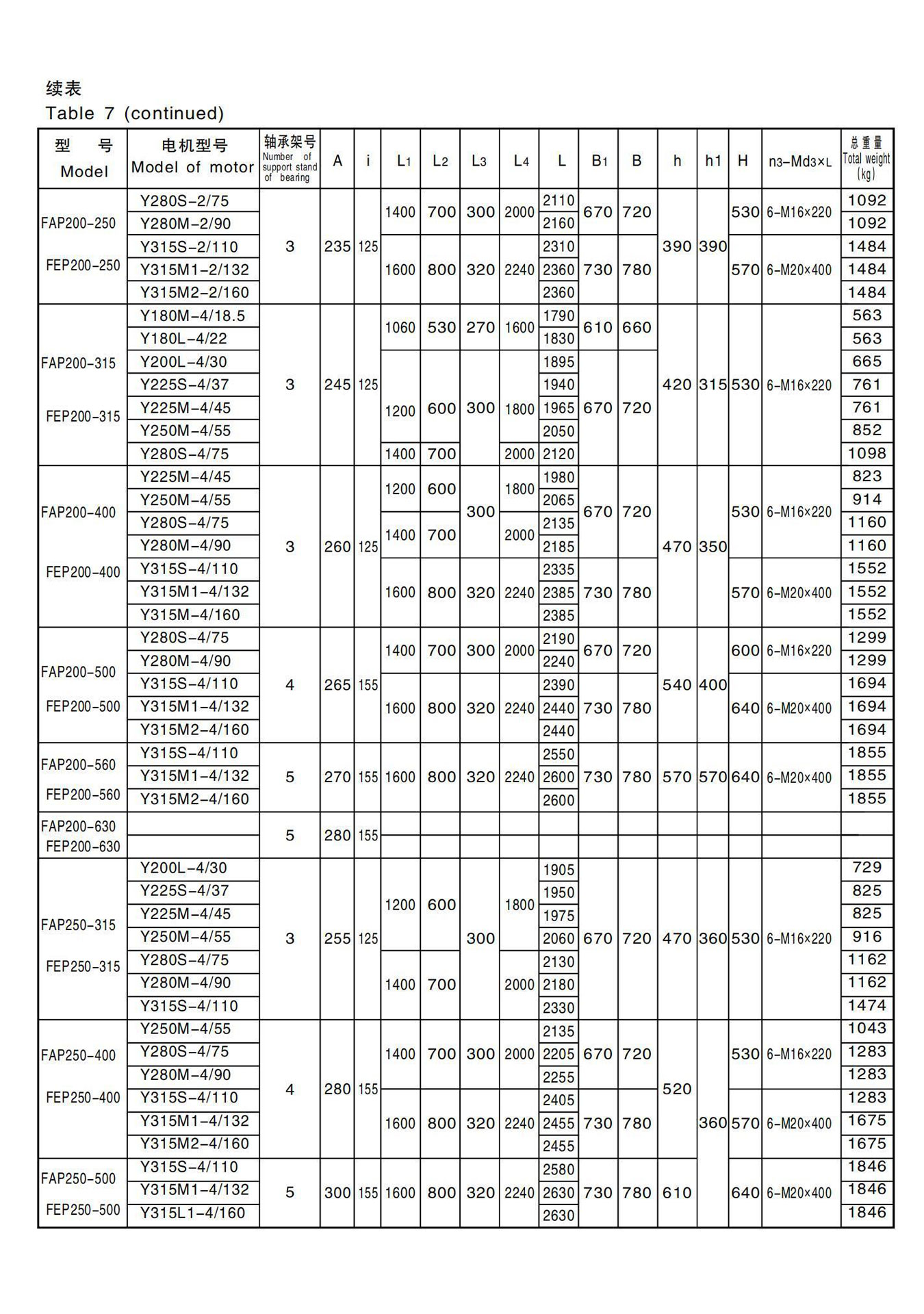

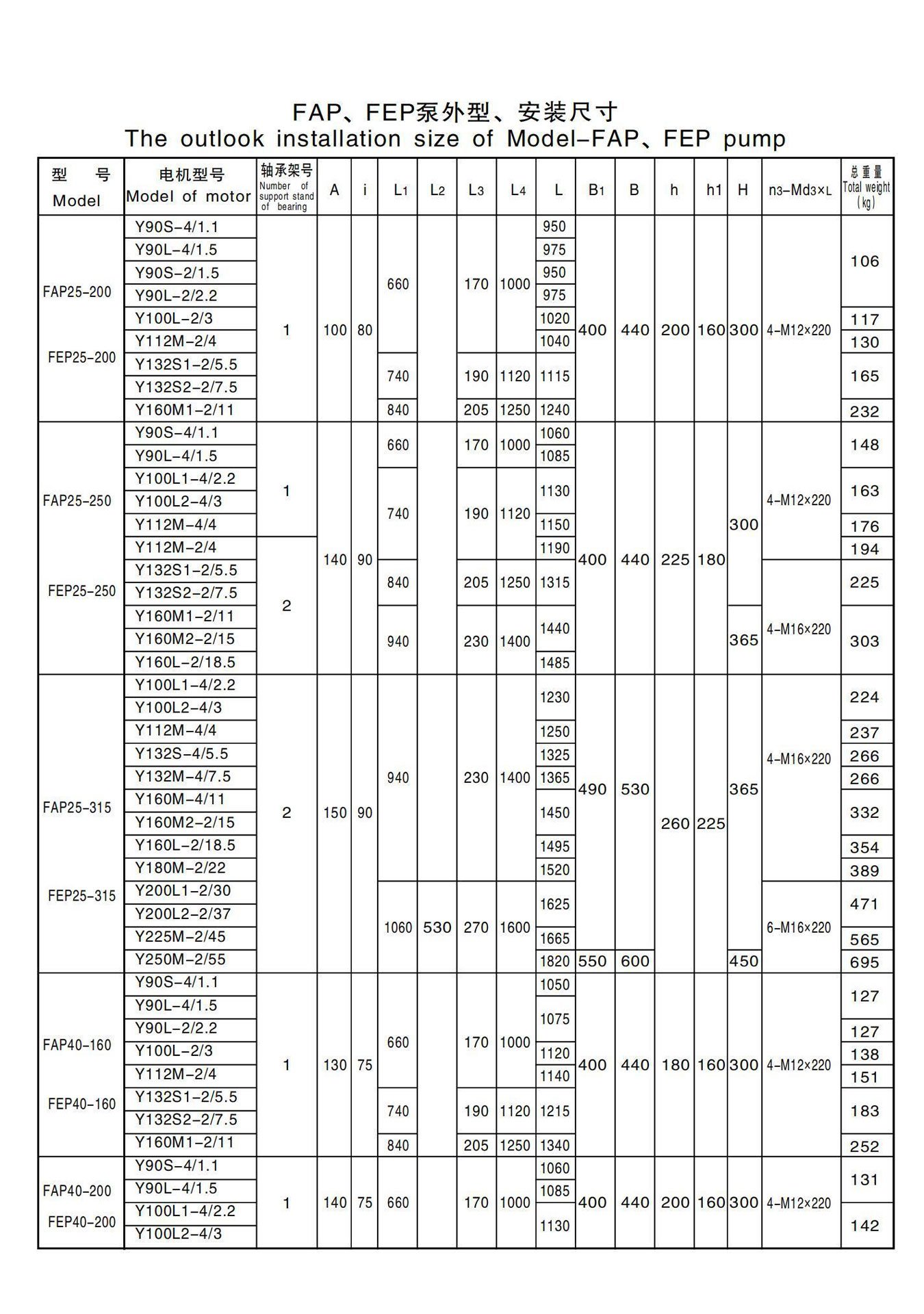

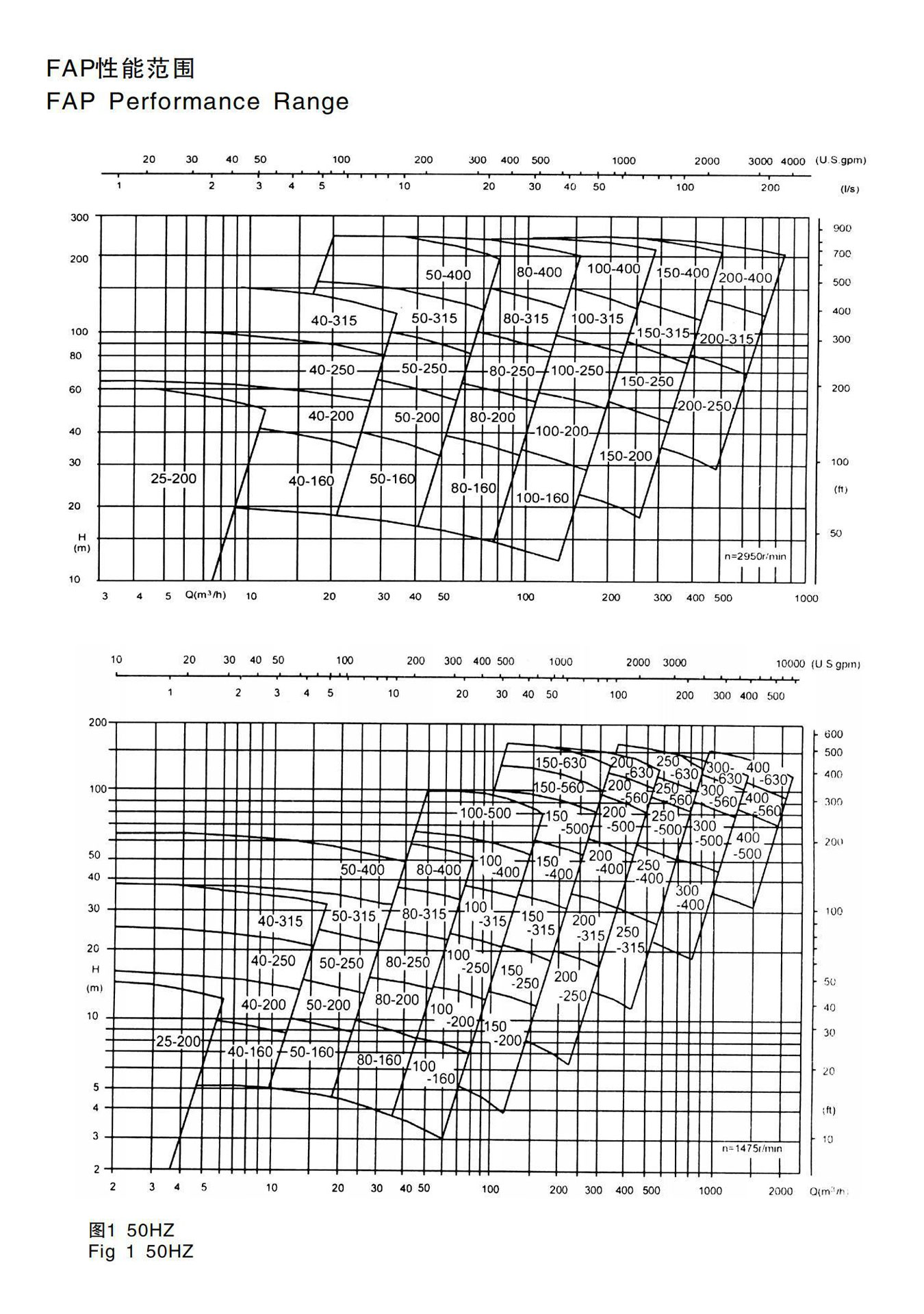

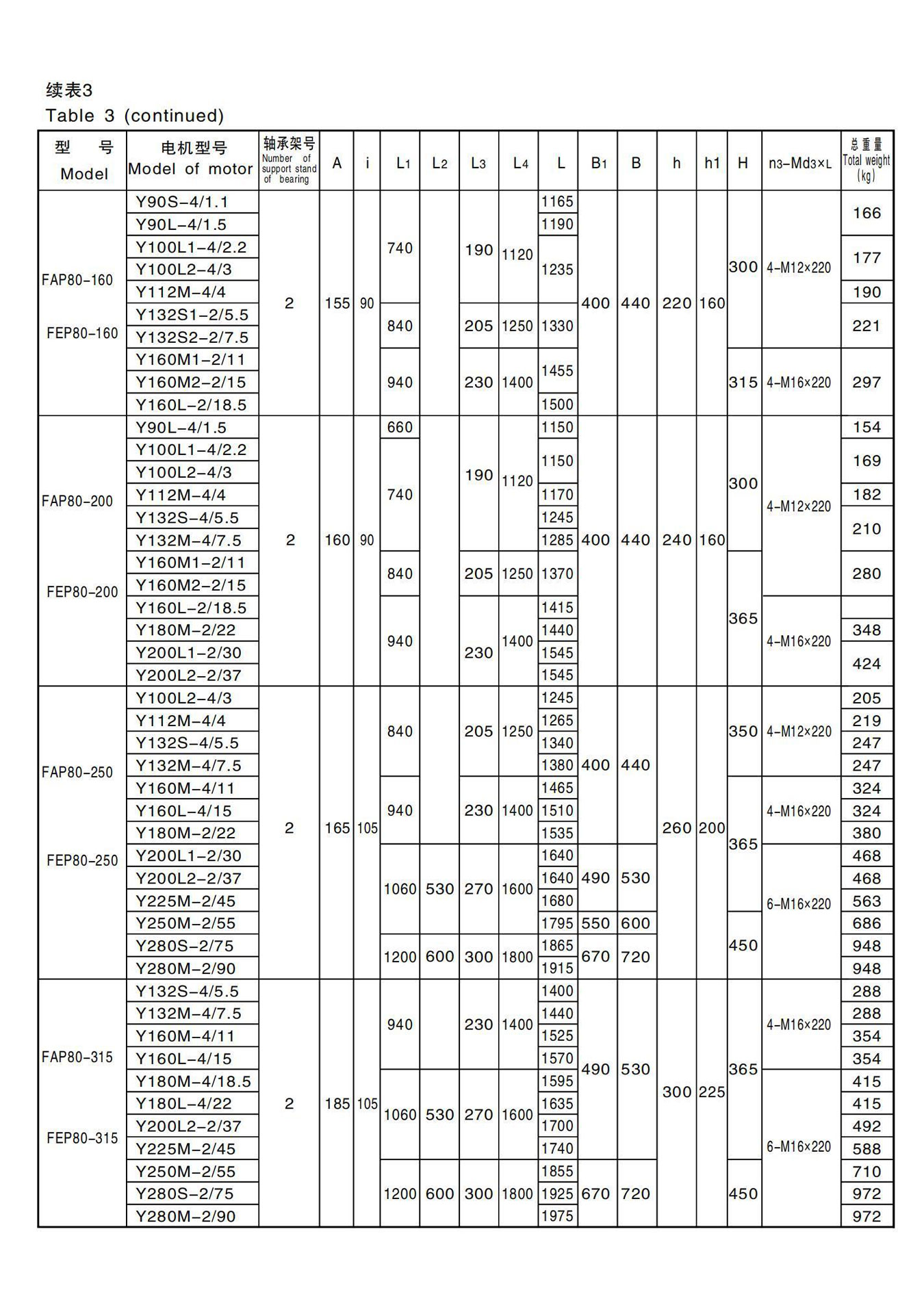

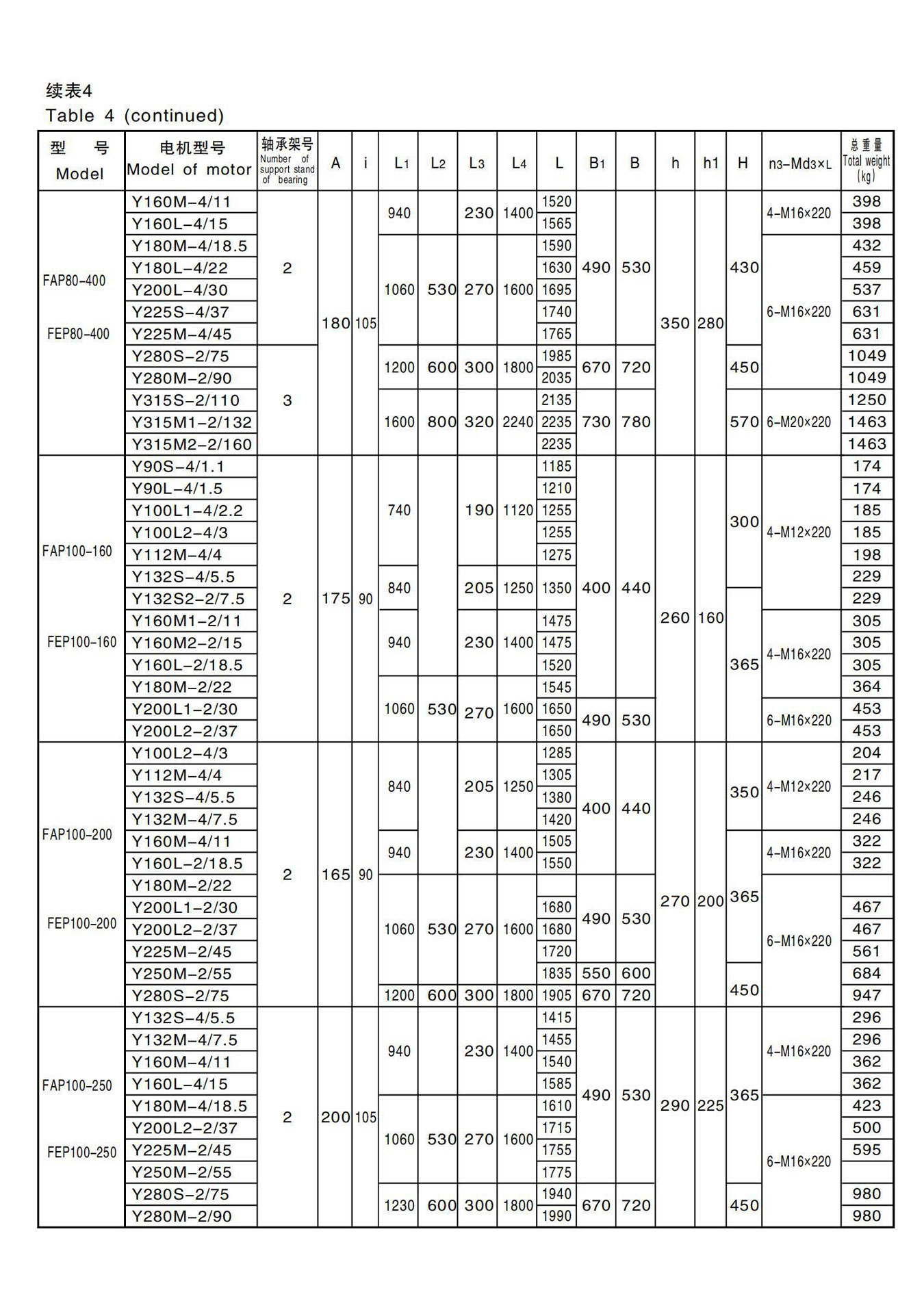

Performance parameters

What can we do for you？

Whether you are looking to purchase products or need professional advice from experts in Feiyue Pump Industry, we are more than happy to provide you with technical support for pump solutions! If you need assistance, please feel free to contact us at any time.

Are you ready to learn about our products？

If you would like to know about our product specifications and usage scenarios, please contact our sales team who are happy to guide you through the next steps.
Do you have any questions about our product after-sales service？

If you would like to know about the after-sales situation of the product, please contact our after-sales team, they are happy to answer your questions.

Jiangsu Feiyue focuses on the research and manufacturing of various high-temperature, high-pressure, wear-resistant, corrosion-resistant, anti cavitation process pumps and special material pumps. Its products are widely used in industries such as petroleum and petrochemical, coal chemical, smelting, steel, nuclear power, thermal power, solar thermal power generation, biomass power generation, chemical fiber, fine chemical, new energy, and environmental protection.
