High temperature and high pressure solid-liquid mixed transportation wear-resistant pump (OH2)

Description：

This series of pumps is a horizontal single-stage petrochemical process pump designed according to the API610 standard, with a high degree of standardization. The basic components of different specifications of pumps in the series can be interchanged. This series of pumps has nearly 50 specifications and 9 universal bearing components covering 4 pressure levels, which can be widely used in various demanding industrial processes.

If you would like to have a deeper understanding of our products, prices, and after-sales service, please contact us in the following ways. We will respond promptly and provide you with necessary services wholeheartedly.

+86 0523-84328880

structure and performance

Structural features: 1. The open impeller structure is equipped with replaceable wear-resistant plates on the corresponding pump body and pump cover; 2. The pressure chamber adopts radial guide vanes and annular volute shell, which ensures more uniform stress on the pressure bearing components; 3. The containerized single end mechanical seal is assisted by the Plan32 flushing scheme to improve the sealing reliability and service life of the pump; 4. The large diameter rigid shaft structure improves the reliability and smooth operation of the pump; Flow Q:~1800m³/h Head H:~200m Design temperature: 420 ℃ Design pressure: 15.0MPa

Materials used

1. Impeller and guide vanes: high wear-resistant alloy Ni Hard

2. Pump casing: Martensitic stainless steel 06Cr13Ni4Mo

3. Pump shaft: precipitation hardened stainless steel 17-4PH

4. Shaft sleeve: Austenitic stainless steel 316L

Scope of Application

Coal chemical chilled water pump, lock bucket circulation pump, high-temperature condensate pump; In the fields of petrochemicals, seawater desalination, power plants, etc., where high-temperature, ultra-high pressure, and wear-resistant media are transported;

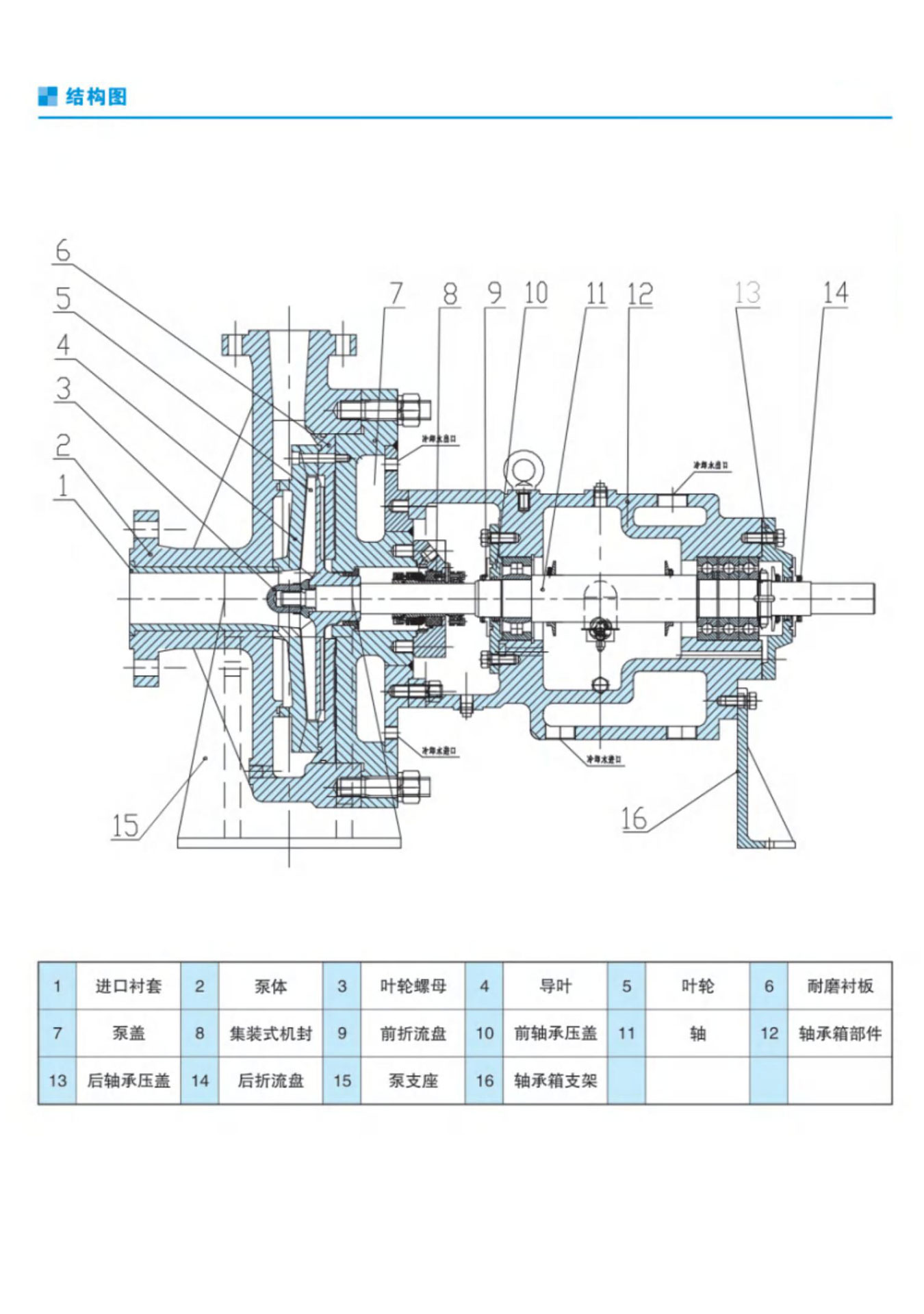

Structural diagram

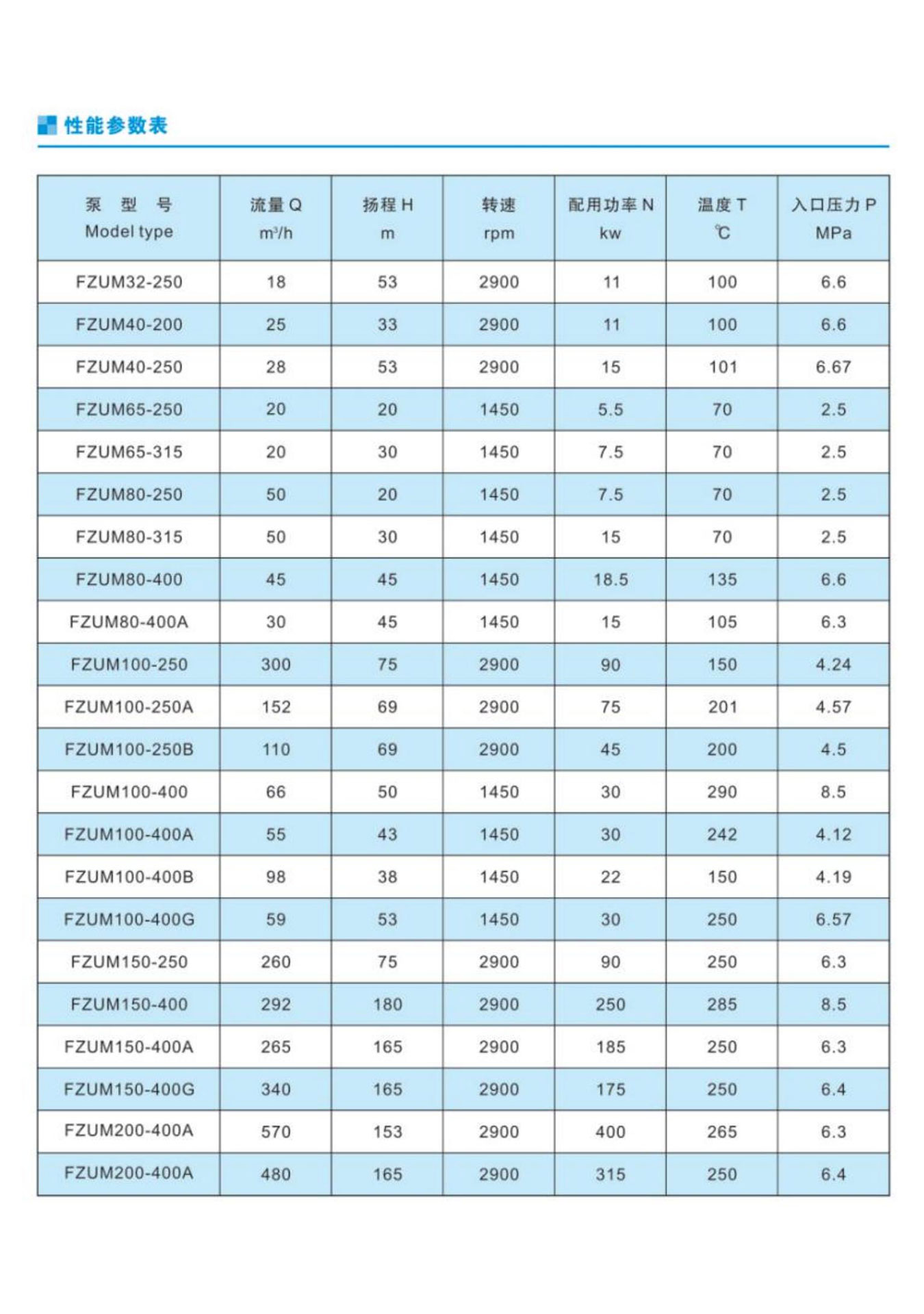

Performance parameters
