Coal chemical pump

Description：

Medium characteristics: Black water with a solid content of 5%~30%, temperature ≤ 150 ℃, and a small amount of NH ∝, H ₂ S, CO ₂ Fe-, The medium is prone to scaling and corrosive. The problem caused by transporting media containing solid particles is severe erosion and corrosion of the overcurrent components and mechanical seals. To address this situation, a. suitable materials are selected for the overcurrent components such as the pump body, impeller, and pump cover, and strict treatment is carried out, which greatly extends the service life of wear-resistant parts and makes user maintenance extremely convenient. b. The use of low rotational speed for the pump improves its resistance to erosion; c. Corresponding measures have also been taken for mechanical seals: a throttling ring is added at the seal to ensure that the pump operates in a good environment and the seal operates reliably for a long time. This simplifies the equipment maintenance process, greatly reduces maintenance costs, and the key is that the reliability of equipment operation is greatly improved.

If you would like to have a deeper understanding of our products, prices, and after-sales service, please contact us in the following ways. We will respond promptly and provide you with necessary services wholeheartedly.

+86 0523-84328880

structure and performance

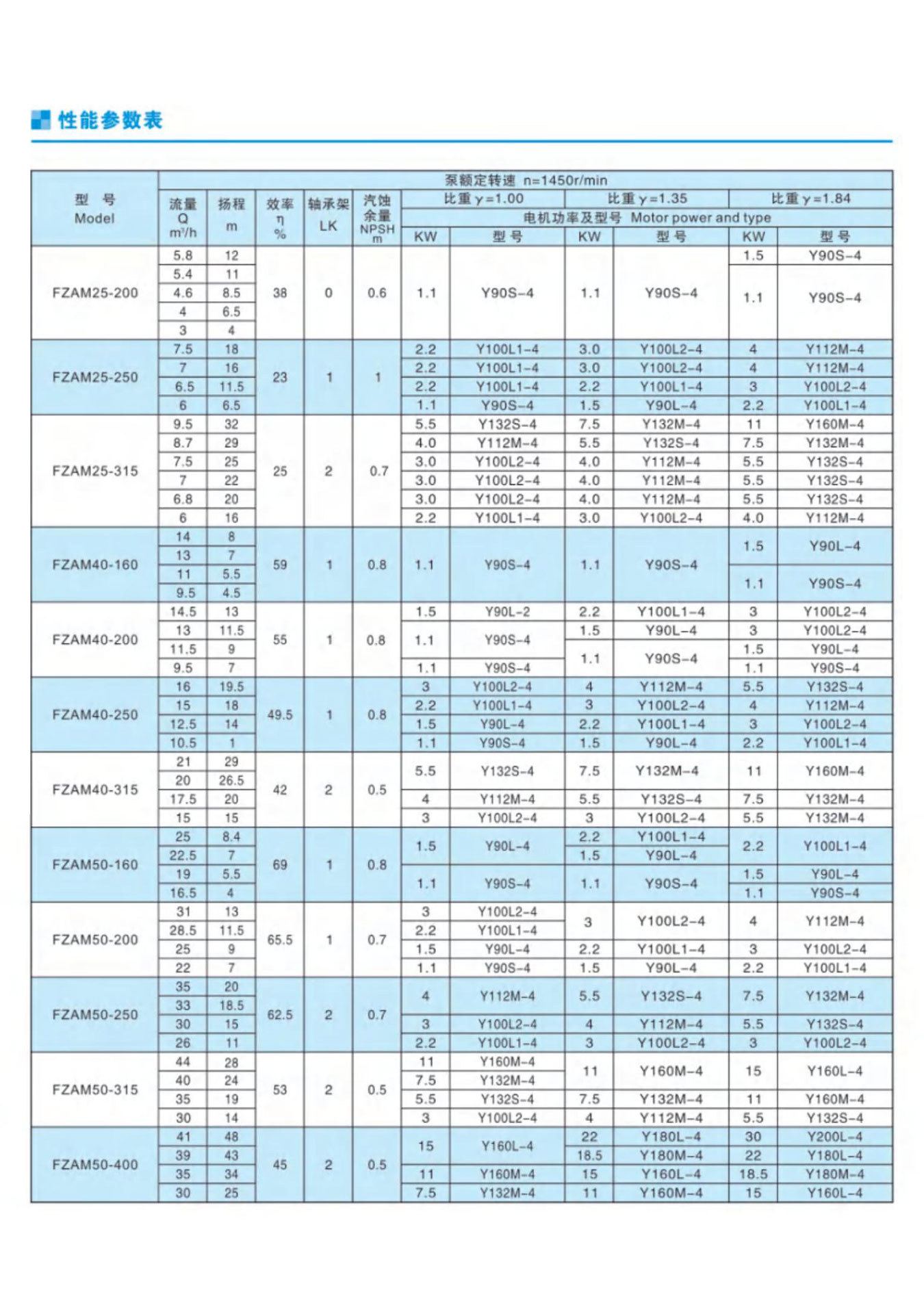

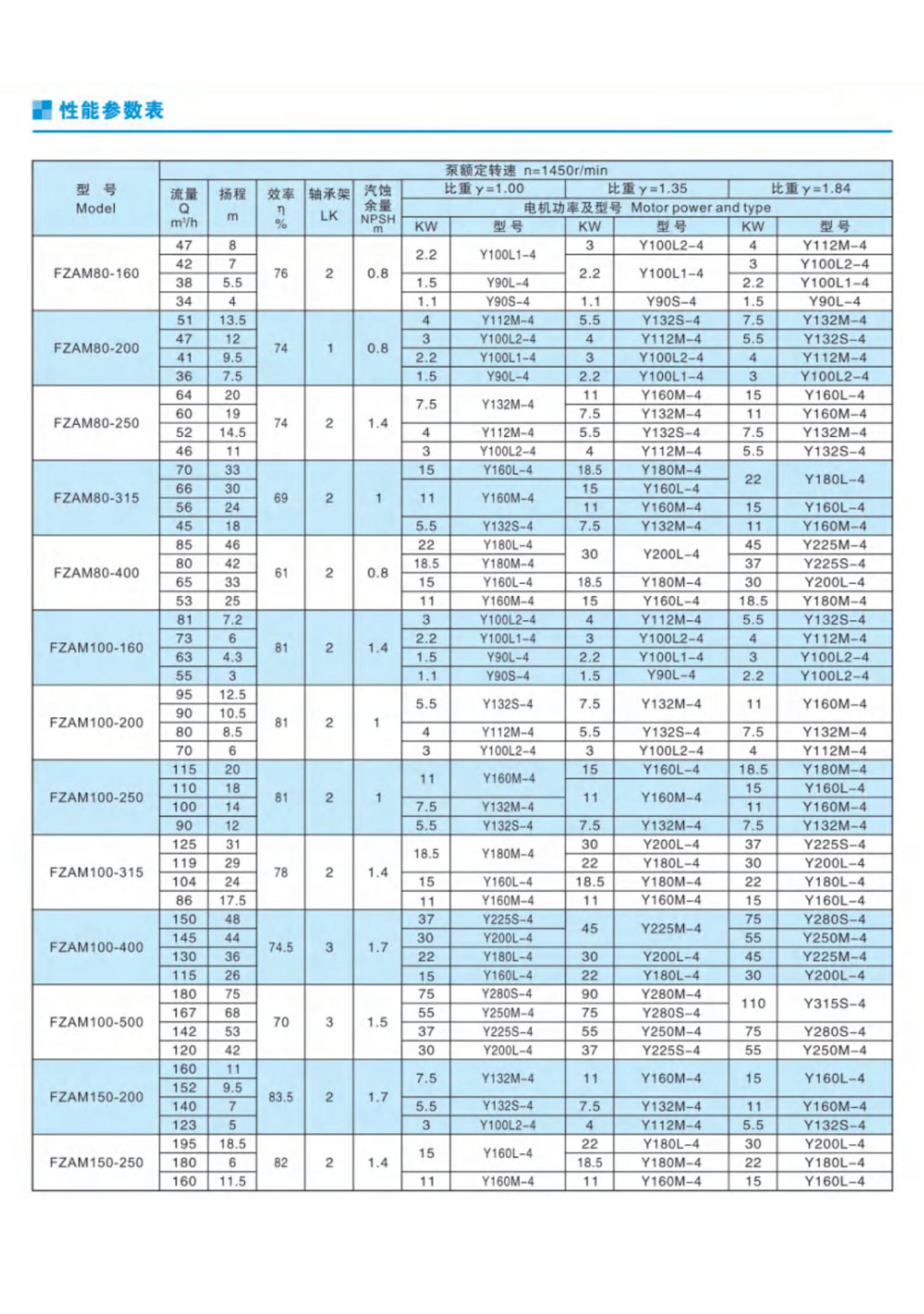

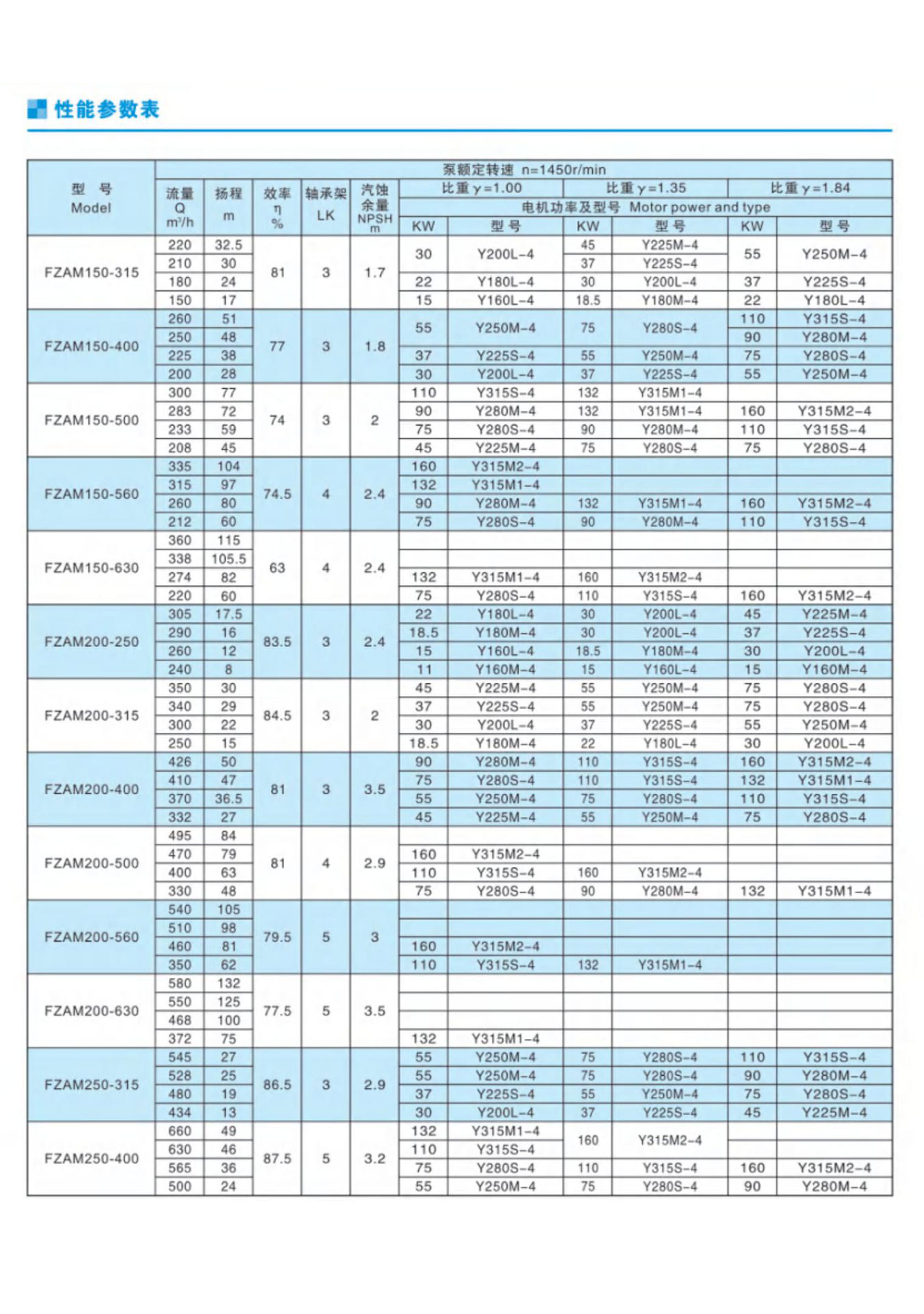

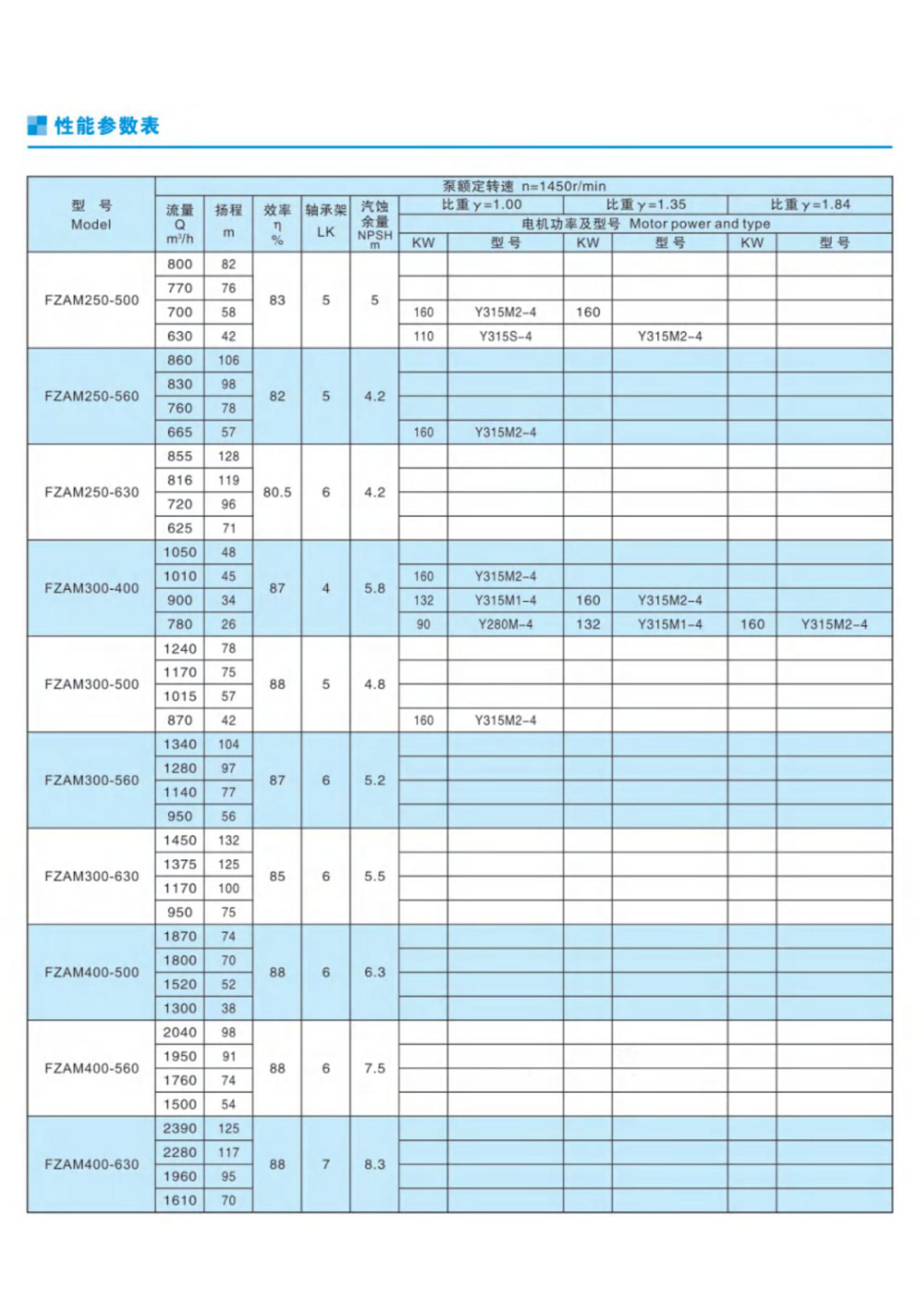

Flow rate: 3~2400m ³/h; Lift: 4-180m; Speed: 1500rpm, 3000rpm; Medium particle concentration: 0-30%; Medium temperature: -40 ℃~180 ℃; Various corrosive media;

Scope of Application

1. Coal water slurry gasification High pressure coal slurry feeding pump: used to transport coal water slurry to the gasifier. Preheating water pump: used to preheat coal slurry and improve gasification efficiency. Chilled water pump: used to cool the high-temperature gas inside the gasifier. 2. Grey water treatment Low pressure ash water pump: used to transport the ash water discharged from the gasifier. Clarifying tank feeding pump: used to transport grey water to the clarifying tank. Bottom flow pump of clarification tank: used to transport high concentration grey water at the bottom of the clarification tank. 3. Methanol synthesis and distillation Methanol feed pump: used in methanol synthesis equipment. Methanol distillation pump: used for reflux and transportation of methanol distillation tower. 4. Transformation and low-temperature methanol washing Process thermal condensate pump: used for transformation equipment. Low temperature methanol washing pump: used in low-temperature methanol washing equipment. 5. Sulfur recovery and hydrogen recovery Liquid sulfur pump: used for sulfur recovery equipment. Acid water pump: used to treat acidic liquids in the sulfur recovery process. 6. Air separation unit High pressure liquid oxygen pump: used in air separation units. Cooling water pump: used for the cooling system of air separation units. 7. Coal slurry preparation Coal slurry unloading pump: used for unloading coal slurry. Additive metering pump: used for conveying additives in the coal slurry preparation process. 8. Other applications Slag pool pump: used to transport the slag discharged from the gasifier. Filter feeding pump: used for feeding the filter. Ground flushing liquid submersible pump: used for transporting ground flushing liquid.

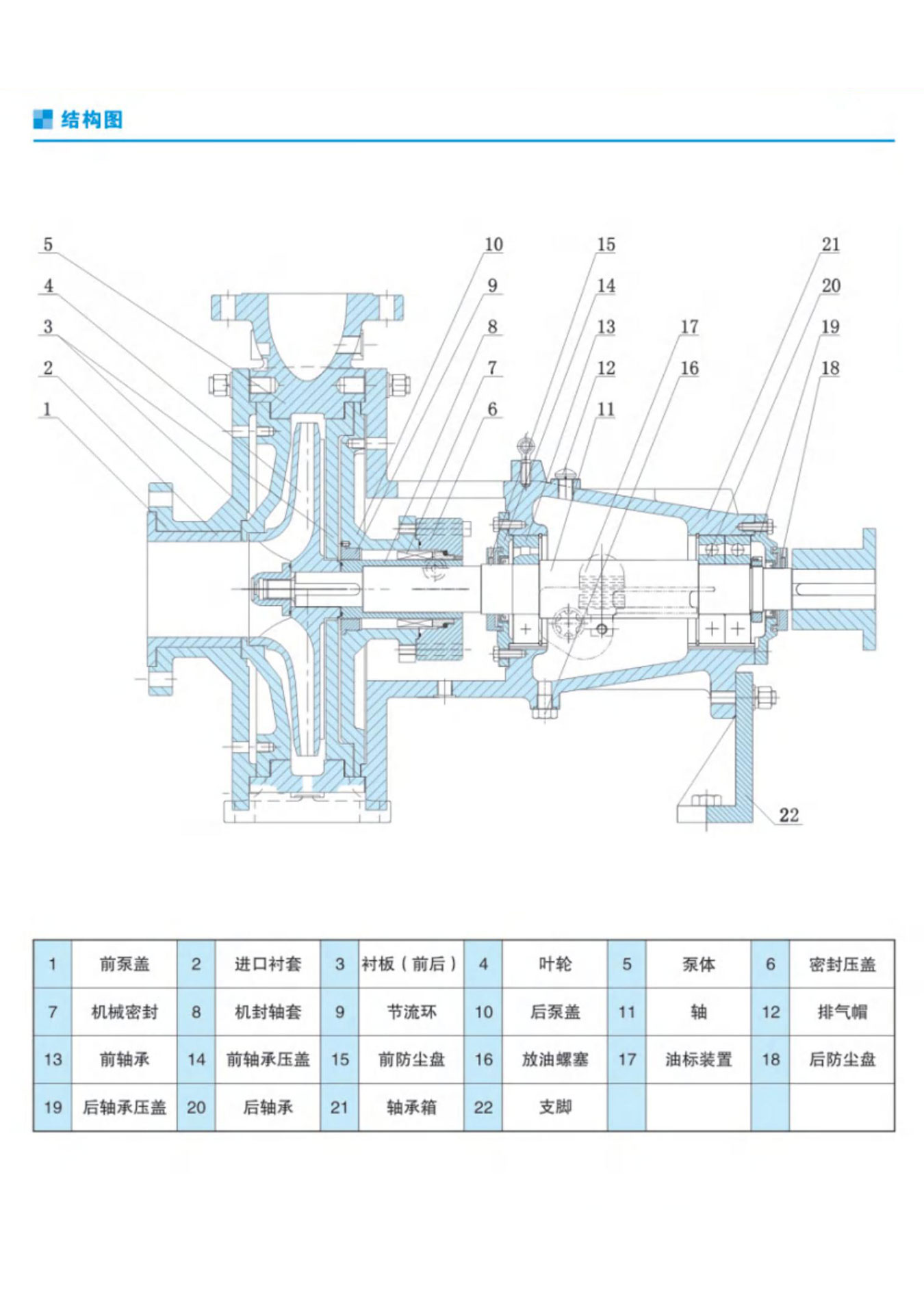

Structural diagram

1. Coal chemical pumps are mainly composed of pump body, impeller, pump cover, sealing components, shaft, bearing box and other components according to working conditions. There are three structural forms based on the working conditions and performance parameters of the medium.

2. Structure 1: Mainly used for slag pool pumps with a head of ≤ 50m, low-pressure ash water pumps, settling tank feed pumps, coal mill water pumps, and pumps for devices with a solid content of less than 5%. Structure 2: Mainly used for slag pool pumps with a head greater than 50m, low-pressure ash water pumps, settling tank feed pumps, coal mill water pumps, and solid content less than 10%. Structure 3: Mainly used for settling tank bottom flow pumps with solid content less than 30%, filter feeding pumps, etc.

3. The overcurrent components of the pump are made of wear-resistant and corrosion-resistant alloy (Ni Hard).

4. The rotor components are mainly composed of shafts, shaft sleeves, and impellers.

5. The bearing is installed in the bearing box to support the rotor and withstand axial and radial forces. This series of pumps adopts a combination of cylindrical roller bearings and diagonal contact ball bearings. The bearings are lubricated with lubricating oil.

6. The pump is driven by an electric motor through an elastic elongated diaphragm coupling. From the inlet end of the pump, the impeller rotates counterclockwise, the inlet of the pump is horizontal, and the outlet is vertical.

7. This series of pumps adopts mechanical seals, and the flushing scheme adopts API682: PLAN11 or PLAN32 scheme according to the working conditions.

8. Each pump in this series must undergo performance and operation tests before leaving the factory, and provide customers with test reports for each pump.
