Description：
The desulfurization pump is a new generation of high-efficiency series desulfurization pumps developed based on the successful design and manufacturing experience of ZM series slurry pumps, and tailored to the characteristics of pumps used for flue gas desulfurization in China. It absorbs advanced technology from similar products at home and abroad and is carefully researched. The large flow range of the pump can reach 12000mm ³/h, and the head of the pump is generally below 100m, covering all pump operating conditions for desulfurization systems. It can be used as a large-scale slurry circulation pump for absorption towers, limestone slurry delivery pump, gypsum slurry discharge pump, recovery pump, pit pump, etc.
If you would like to have a deeper understanding of our products, prices, and after-sales service, please contact us in the following ways. We will respond promptly and provide you with necessary services wholeheartedly.
Performance and material characteristics
Hydraulic design adopts computer-aided design and two-phase flow theory design.
The pump has high efficiency, long service life, and reliable operation.
The overcurrent components are made of all metal wear-resistant chromium nickel alloy material, which balances wear resistance and corrosion resistance. The surface intergranular gap is small, and it has excellent resistance to chloride stress corrosion cracking and higher mechanical strength.
The all metal pump has high operational reliability and overcomes the disadvantages of non-metallic pump liners, such as detachment, tearing, and deformation.
The hydraulic friction loss is small, and the efficiency is more than 3% higher than that of non-metallic pumps with the same parameters.
All metal pumps are easy to control and ensure in terms of size, with high surface smoothness of parts, small clearance between parts, high volumetric efficiency, and a comprehensive efficiency that is more than 5% higher than non-metallic pumps.
The overcurrent components have a long service life, and the metal protective plate has a stronger ability to withstand shear sliding wear than general non-metallic materials, and can withstand long-term shear wear.
The dynamic wear resistance is 0.008-0.08mm years, with high tensile strength, and can maintain constant performance under long-term abrasion conditions.
Shaft seal type
All shaft seals are equipped with mechanical seals. Our company offers two types of mechanical seals: those with shaft seals and those without shaft seals.
There is a shaft seal water type
Combination mechanical seal, with a shaft seal water flow rate of 0.1-1% of the pump flow rate, but not less than 1m ³/h; The water pressure of the shaft seal is equal to half of the pump outlet pressure.
No shaft seal water type
Water free medium self flushing mechanical seal with unique structure and good water-saving effect.
型号意义

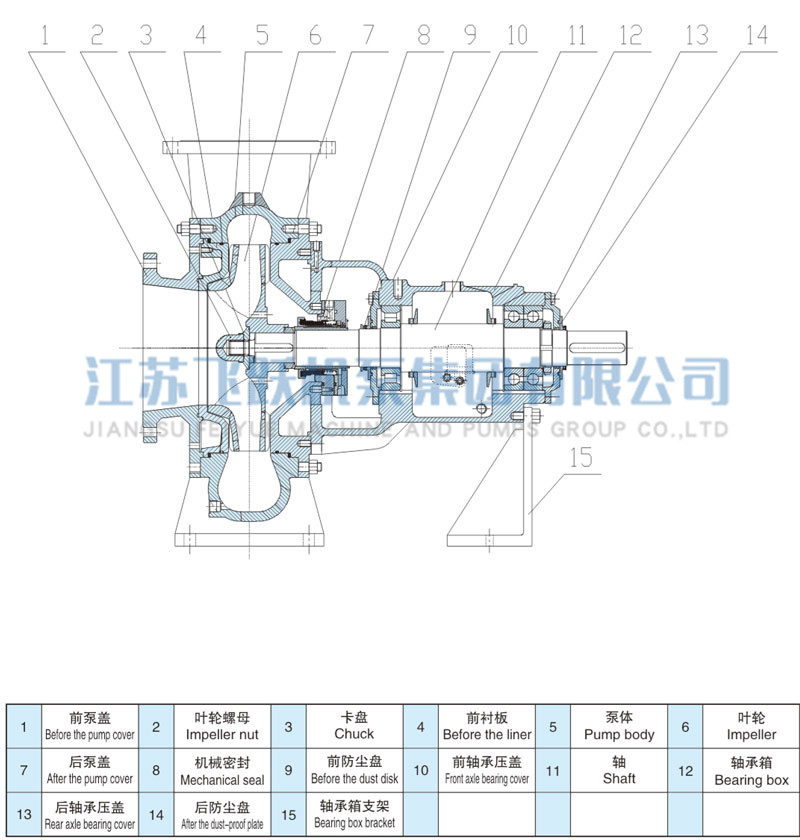

■结构图
